Series 60 Detroit Diesel Engines

FUEL SYSTEM - groups: 2.5101 - 2.5110

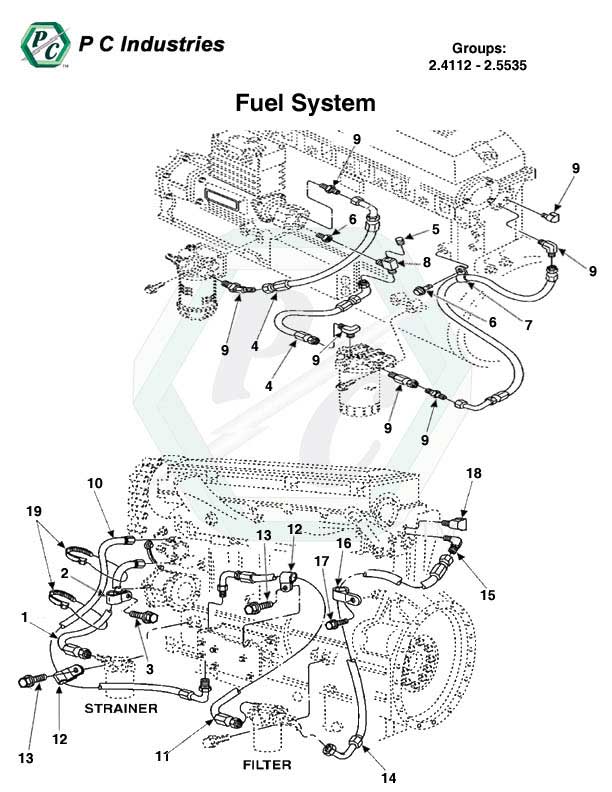

2.5001 - 2.5535 Fuel System_2.jpg - Diagram

Page: 137

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	11.1L	12.7L	14.0L	Price	QOH
Details	23520334	Clip, 1" X 3/4" X 3/8" X 1/2" Hose	2.5101	00	A/R	A/R	A/R	$0.94	0
Details	2236474	Clip, #10	2.5101	00	A/R	A/R	A/R	$0.89	0
Details	23534169	Clip, 3/8" Tube X 7/16" Bolt	2.5101	00	A/R	A/R	A/R	$14.79	0
Details	BAHP0311	Hose Assembly, #6 X 33.5" Long; H&P	2.5101	00	A/R	A/R	A/R	$69.68	0
Details	MAHP0384	Hose Assembly, #6 X 38.4" Long; H&P; SAE	2.5101	00	A/R	A/R	A/R	$59.04	0
Details	MAHU0489	Hose Assembly, #6 X 48.9" Long	2.5101	00	A/R	A/R	A/R	$71.84	0
Details	MAGP0070	Hose Assembly, #6 X 9.4" Long; G&P	2.5101	00	A/R	A/R	A/R	$48.01	0
Details	23530153	Tube Assembly, Fuel Pump To Union; (Dev. L 454.5mm)	2.5110	04	A/R	A/R	A/R	$17.24	0
Details	8923847	Plug, 1/4-18" Pipe; NPTF	2.5110	05	A/R	A/R	A/R	$0.95	4097
Details	8924517	Plug, 3/8"-18; Square Socket; Vibra Seal	2.5110	05	A/R	A/R	A/R	$1.02	4246
Details	11504986	Bolt, M8 X 1.25 X 14mm	2.5110	06	A/R	A/R	A/R	$1.26	0
Details	2236474	Clip, #10	2.5110	07	A/R	A/R	A/R	$0.89	0
Details	23509135	Clip, Spring; 0.490" Diameter 3/8" Bolt; (4.6040)	2.5110	07	A/R	A/R	A/R	$12.26	0
Details	23509136	Clip, Spring; 0.640" Diameter 3/8" Bolt; (2.5146)	2.5110	07	A/R	A/R	A/R	$20.87	0
Details	23505247	Tee, 2-Way; 90 Deg. 5/8" Tube; 1/4" Pipe	2.5110	08	A/R	A/R	A/R	$37.34	1
Details	23505246	Tee, SPL 2-Way; 1/4" NPTF, 5/8" Tube; (12.9616)	2.5110	08	A/R	A/R	A/R	$37.26	0
Details	8925325	Bushing, Reducing Pipe; 3/8" PTF 1/4" Zinc	2.5110	09	A/R	A/R	A/R	$4.93	14
Details	8929725	Elbow, 0.80" Restriction, 3/8" Pipe X 5/16"; (2.5210)	2.5110	09	A/R	A/R	A/R	$30.63	0
Details	8924998	Elbow, 90 Deg.	2.5110	09	A/R	A/R	A/R	$7.55	0
Details	8929832	Elbow, 90 Deg. 3/8" Inv. Flared Tube, 3/8" Pipe	2.5110	09	A/R	A/R	A/R	$9.02	5
Details	8924175	Elbow, 90 Deg. 3/8" Street; (12.9480)	2.5110	09	A/R	A/R	A/R	$6.05	4
Details	8929831	Connector, Straight 3/8" Flared Tube; 3/8" Pipe	2.5110	09	A/R	A/R	A/R	$1.84	0
Details	23505203	Hose Assembly, #6 X 14.44" Long Superceded... Click 'Details' for replacement.	2.5110	04	A/R	A/R	A/R		0
Details	BAHH0126	Hose Assembly, #6 X 14.9" Long; H&H	2.5110	04	A/R	A/R	A/R	$23.88	0
Details	BAHP0144	Hose Assembly, #6 X 16.75" Long	2.5110	04	A/R	A/R	A/R	$0.15	1
Details	BAHP0165	Hose Assembly, #6 X 18.9" Long; H&P	2.5110	04	A/R	A/R	A/R	$41.12	0
Details	MAHP0189	Hose Assembly, #6 X 18.9" Long; H&P	2.5110	04	A/R	A/R	A/R	$47.22	0
Details	CAHH0171	Hose Assembly, #6 X 19.42" Long	2.5110	04	A/R	A/R	A/R	$47.32	0
	GROUP 2.5110 CONTINUED ON NEXT PAGE
