Series 60 Detroit Diesel Engines

FUEL SYSTEM - groups: 2.5120 - 2.5160

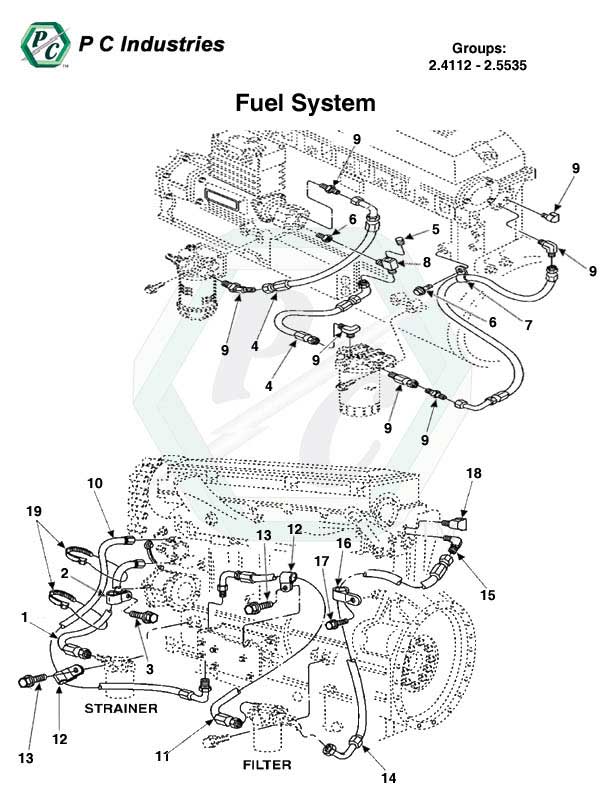

2.5001 - 2.5535 Fuel System_2.jpg - Diagram

Page: 140

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	11.1L	12.7L	14.0L	Price	QOH
Details	23534169	Clip, 3/8" Tube X 7/16" Bolt	2.5120	00	A/R	A/R	A/R	$14.79	0
Details	11503454	Bolt, M10 X 1.5 X 20mm	2.5120	00	A/R	A/R	A/R	$3.76	0
Details	11509511	Bolt, M8 X 1.25 X 20mm	2.5120	00	A/R	A/R	A/R	$1.27	2
Details	8929169	Washer; (12.9190)	2.5120	00	A/R	A/R	A/R	$2.24	24
Details	5114210	Support, Clip; (4.8042)	2.5121	12	A/R	A/R	A/R	$6.67	0
Details	2362448	Clip, 0.688" Diameter, 3/8" Bolt; Ctd.; (12.8554)	2.5121	12	A/R	A/R	A/R	$1.89	0
Details	2488022	Clip, 3/8" Bolt; (12.8554)	2.5121	12	A/R	A/R	A/R	$1.89	8
Details	11503454	Bolt, M10 X 1.5 X 20mm	2.5121	13	A/R	A/R	A/R	$3.76	0
Details	11504986	Bolt, M8 X 1.25 X 14mm	2.5121	13	A/R	A/R	A/R	$1.26	0
Details	11507036	Nut, M8 X 1.25	2.5121	00	A/R	A/R	A/R	$0.93	0
Details	8924517	Plug, 3/8"-18; Square Socket; Vibra Seal	2.5144	00	A/R	A/R	A/R	$1.02	4249
Details	BAHP0121	Hose Assembly, #6 X 14.4" Long; H&P	2.5144	00	A/R	A/R	A/R	$39.69	0
Details	MAHH0269	Hose Assembly, #6 X 26.9" Long; H&H	2.5144	00	A/R	A/R	A/R	$39.87	0
Details	MAHP0284	Hose Assembly, #6 X 28.4" Long	2.5144	00	A/R	A/R	A/R	$64.66	0
Details	2236474	Clip, #10	2.5146	00	A/R	A/R	A/R	$0.89	0
Details	11503454	Bolt, M10 X 1.5 X 20mm	2.5146	00	A/R	A/R	A/R	$3.76	0
Details	23530608	Kit, Steel Fuel Line; Dual Filter	2.5160	00	A/R	A/R	A/R	$166.71	0
Details	MAGP0130	Hose Assembly, #6 X 15.4" Long	2.5160	14	1	1	1	$48.34	0
Details	11503454	Bolt, M10 X 1.5 X 20mm	2.5160	00	1	1	1	$3.76	0
Details	11504986	Bolt, M8 X 1.25 X 14mm	2.5160	00	1	1	1	$1.26	0
Details	23520334	Clip, 1" X 3/4" X 3/8" X 1/2" Hose	2.5160	00	2	2	2	$0.94	0
Details	23530324	Tube Assembly; STL	2.5160	14	1	1	1	$31.02	0
Details	23530609	Kit, Steel Fuel Line, Single Filter	2.5160	00	A/R	A/R	A/R	$123.76	0
Details	MAGU0177	Hose Assembly, #6 X 20" Long	2.5160	14	1	1	1	$50.98	0
Details	11503454	Bolt, M10 X 1.5 X 20mm	2.5160	00	1	1	1	$3.76	0
Details	23520334	Clip, 1" X 3/4" X 3/8" X 1/2" Hose	2.5160	00	2	2	2	$0.94	0
Details	23530324	Tube Assembly; STL	2.5160	14	1	1	1	$31.02	0
	GROUP 2.5160 CONTINUED ON NEXT PAGE
