Series 60 Detroit Diesel Engines

VENTILATING SYSTEM - groups: 4.8200 - 4.8260

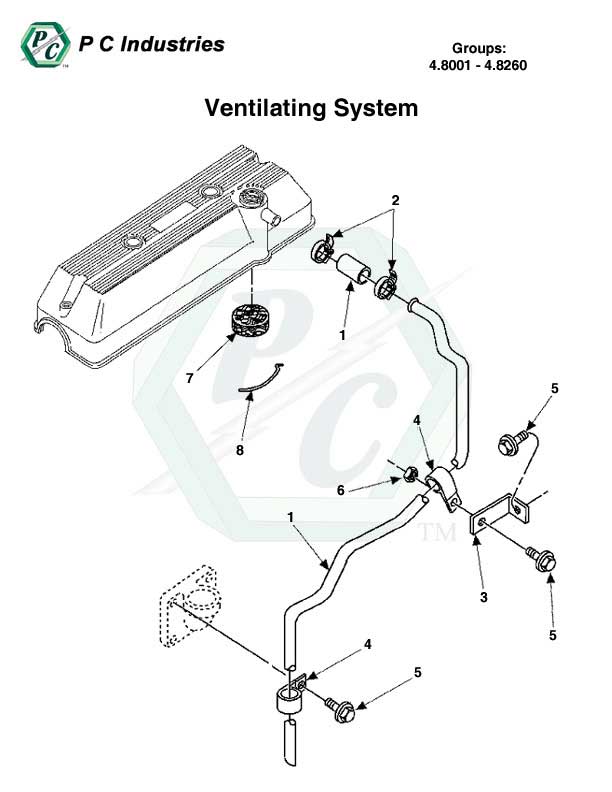

4.8001 - 4.8260 Ventilating System.jpg - Diagram

Page: 217

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	11.1L	12.7L	14.0L	Price	QOH
Details	23516532	Regulator Assembly, 1.25D X 5.9 Clsd Crankcase; (Option Type #1154)	4.8240	00	1	1	1	$258.06	0
Details	23516534	Filter	4.8240	00	1	1	1	$50.88	0
Details	23508028	Clamp, Hose; Snapper Type Snp-36	4.8240	00	A/R	A/R	A/R	$1.66	0
Details	23505095	Hose, 1.25" 90 Deg.; (3.5439)	4.8240	00	A/R	A/R	A/R	$69.58	5
Details	23525229	Hose, 90 Deg. 1.25 I.D., 2.50 X 4.00	4.8240	00	A/R	A/R	A/R	$62.89	0
Details	23525032	Adaptor, Turbo Air Inlet; (Option Type #1154)	4.8250	00	1	1	1	$262.24	0
Details	23525312	Spacer	4.8250	00	A/R	A/R	A/R	$10.29	0
Details	23517856	Spacer, 0.36 X 0.54 X 1.44; (Option Type #1154)	4.8250	00	1	1	1	$10.42	0
Details	5183229	Strap, 3-53; (10" Diameter Cleaner); (3.2014)	4.8250	00	A/R	A/R	A/R	$35.30	0
Details	11503454	Bolt, M10 X 1.5 X 20mm	4.8250	00	A/R	A/R	A/R	$3.85	0
	933010089	Bolt, M10 X 20	4.8250	00	A/R	A/R	A/R		0
Details	11509516	Bolt, M8 X 1.25 X 70mm	4.8250	00	A/R	A/R	A/R	$5.15	0
Details	11500775	Bolt, M8 X 1.5 X 40mm	4.8250	00	A/R	A/R	A/R	$2.60	0
Details	11506101	Nut, M10 X 1.5	4.8250	00	A/R	A/R	A/R	$0.74	38
Details	11503553	Nut, M8 X 1.25	4.8250	00	A/R	A/R	A/R	$12.14	0
	125010524	Washer, A10.5	4.8250	00	A/R	A/R	A/R		0
Details	23504233	Clamp, 6 7/8"-7.75" Clamping Range; (3.1230)	4.8250	00	A/R	A/R	A/R	$22.61	0
Details	23509403	Clamp, 6.12"-7.00" Hose	4.8250	00	A/R	A/R	A/R	$17.44	0
Details	23525182	Hose, 6.00 I.D. X 2.25 Superceded... Click 'Details' for replacement.	4.8250	00	A/R	A/R	A/R		0
Details	23525115	Hose, 7.00 I.D. X 2.12	4.8250	00	A/R	A/R	A/R	$148.38	0
Details	23525183	Hose, 7.00 X 5.00" Long	4.8250	00	A/R	A/R	A/R	$248.38	0
Details	23525035	Bracket; (Option Type #1154)	4.8260	00	1	1	1	$495.97	0
Details	11504986	Bolt, M8 X 1.25 X 14mm	4.8260	00	A/R	A/R	A/R	$1.29	0
	CONTINUE TO NEXT PAGE FOR GROUP 5.1001
