Series Inline 71 Detroit Diesel Engines

SHUT OFF & ALARM SYSTEM - groups: 7.4519 - 7.4596

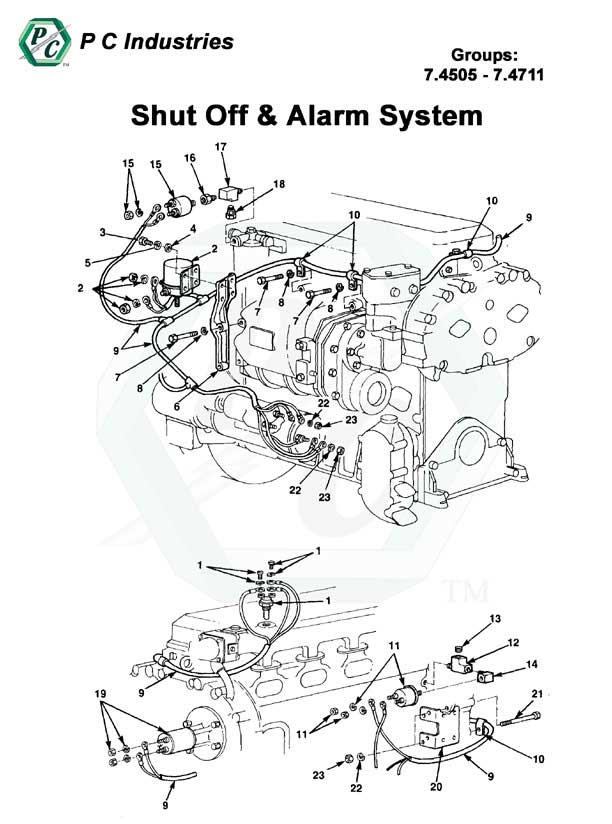

il71_shut_off_pg165-170.jpg - Diagram
Page: 166
Part No. Description Group Ref#2IL3IL4IL6IL Price QOH
Details View Images 103319 Lockwasher, 1/4" (12.9200) 7.4519054444$0.37285
Details 5141260 Lever Assy., Shutdown Solenoid Micro Switch 7.452000111$136.830
Details View Images 455532 Pin, 1/8" X 1/2" Roll (12.9275) 7.452000111$0.5092
5143833 Switch, Air Shutoff Or Governor Solenoid Limit (OBSOLETE) 7.452200111OBSOLETE0
Details View Images 5168929 Bracket, Air Shutoff Solenoid 7.453006111$134.7712
Details 5189951 Bracket, Air Shutoff Solenoid 7.453006111$123.510
5169183 Bracket, Air Shutoff Solenoid (OBSOLETE) 7.4530061OBSOLETE0
Details View Images 186625 Bolt, 5/16"-18 X 7/8" (12.9200) 7.4530073$0.942
Details View Images 179848 Bolt, 3/8"-16 X 2 1/4" (12.9200) 7.453007222$1.270
Details View Images 103320 Lockwasher, 5/16" (12.9200) 7.4530083$0.43495
Details View Images 103321 Lockwasher, 3/8" (12.9200) 7.453008222$0.35279
Details 5142107 Link, Air Shutoff Solenoid Contol Rod 7.4538001$204.500
Details 5168409 Link, Air Shutoff Solenoid Contol Rod 7.453800111$44.430
Details 5168909 Link, Air Shutoff Solenoid Contol Rod 7.453800111$75.430
Details View Images 5115834 Link, Air Shutoff Solenoid Contol Rod 7.4538001111$22.291
Details 5115835 Link, Air Shutoff Solenoid Contol Rod 7.4538001111$15.440
Details 112526 Pin, 1/16" X 3/8" Cotter (12.9250) 7.453800111$0.550
Details 104036 Pin, 1/4"-28 Adj. Rod (12.9260) 7.4538001$8.620
Details View Images 103361 Pin, 1/16" X 1/2" Cotter (12.9250) 7.4538001111$0.35159
Details 5115204 Bolt, 1/4"-28 X 1 1/4" (7.4519) 7.4538001111$29.730
Details View Images 120380 Lockwasher, 1/4" (12.9200) 7.4538001111$0.61151
Details View Images 120613 Nut, 1/4"-28 (12.9120) 7.4538001111$0.89127
Details 5169184 Spring, Air Inlet Housing Shutdown Valve Shaft (3.3070) 7.4541001$11.700
Details 5104394 Harness, Air Shut-Off Wiring 7.4545091$389.620
5143918 Harness, Air Shut-Off Wiring (OBSOLETE) 7.4545091OBSOLETE0
Details 5104395 Harness, Air Shut-Off Wiring 7.454509111$365.670
Details 5182537 Wiring Assy., Air Shut-Off 7.454500111$24.870
Details 3223197 Clip, Air Shut-Off Wiring Harness 7.454510A/RA/RA/RA/R$1.290
142451 Bulb, Alarm Warning Light (12.9520) (OBSOLETE) 7.4582001111OBSOLETE0
Details 23520024 Switch, Oil Pressure (#10 Break) 7.4586111111$41.6535
Details 5147337 Switch, Oil Pressure 7.4586111111$1,675.470
View Images 5186528 Bellows Assy., Oil Pressure Switch (OBSOLETE) 7.4586001111OBSOLETE0
Details View Images 8924142 Bushing, 1/4" X 1/8" Red. (12.9570) 7.458600A/RA/RA/RA/R$4.470
Details View Images 8924214 Tee, 1/8"-27 Pipe (12.9616) 7.458612A/RA/RA/RA/R$6.087
Details 8924380 Plug, 1/8"-27 Pipe (12.9550) 7.458600A/RA/RA/RA/R$1.144647
Details View Images 8923847 Plug, 1/4"-18 Pipe (4.7001) 7.458613A/RA/RA/RA/R$0.861681
Details View Images 8924213 Elbow, 1/8" Street 90° (12.9590) 7.458614A/RA/RA/RA/R$3.725
1511626 Switch, Oil Temperature (260° Make) (OBSOLETE) 7.4593001OBSOLETE0
Details View Images 120217 Lockwasher, #10 (12.9200) 7.4593002$0.7871
Details View Images 120614 Nut, #10-32 Hex. (12.9120) 7.4593002$0.8922
Details 5199575 Hose (#6 X 25 Ft. Bulk), Oil Pressure Switch (Block To Valve) 7.459600A/RA/RA/RA/R$240.041
CONTINUE TO NEXT PAGE FOR GROUP 7.4597
