Series 92 Detroit Diesel Engines

VARIABLE SPEED GOVERNOR - groups: 2.7001 - 2.7045

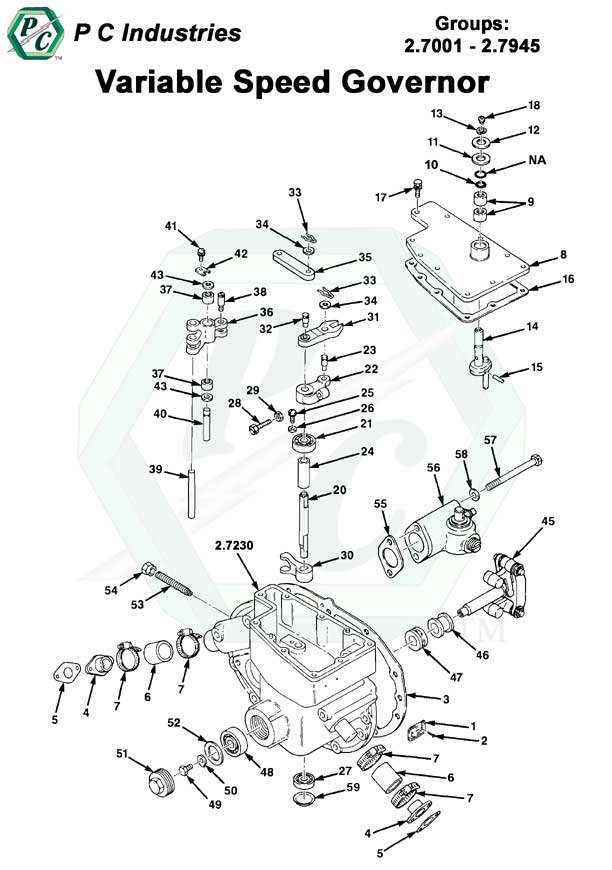

92_variable_governor_pg101-106.jpg - Diagram
Page: 101
Part No. Description Group Ref#6V8V12V16V Price QOH
To Identify The Correct Variable Speed Governor Assembly
Contact PC Industries With Engine Serial Number
Details 5102820 Governor Assembly, Single Weight Variable Speed
Superceded... Click 'Details' for replacement.
2.700100A/RA/R0
Details 5102825 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$7,133.400
Details 5102921 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$3,191.970
Details 5102923 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$1,420.000
Details 5102924 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$6,370.060
Details 5102925 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$2,463.070
Details 5102926 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$2,217.110
Details View Images 5102928 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$2,668.7927
5102929 Governor Assembly, Single Weight Variable Speed (OBSOLETE) 2.700100A/RA/ROBSOLETE0
Details 5102930 Governor Assembly, Single Weight Variable Speed 2.700100A/RA/R$2,625.650
Details 23502063 Governor Assembly, Single Weight Variable Speed 2.700100A/R$3,020.320
Details View Images 5179709 Washer, 1/4" (Copper) (2.7175) 2.700100A/RA/RA/RA/R$1.66100+
Details View Images 5155596 Washer, 5/16" (Copper) (4.7120) 2.700100A/RA/RA/RA/R$1.93100+
Details View Images 5122166 Plate, Governor Name 2.700201 1 1 2 2$5.7535
Details View Images 145369 Screw, #0-3/16" Round Head Drive (12.9067) 2.700202 3 3 6 6$0.7161
Details View Images 8924266 Gasket, Governor To Blower (3.4190) 2.701003 1 12 2$6.54100+
Details View Images 5124333 Cover (On Cyl. Head), Governor Fuel Rod 2.703004 2 2 4 4$71.12100+
Details View Images 5123812 Gasket, Governor Fuel Rod Cover (1.2060) 2.703005 8 8 16 16$1.25100+
Details View Images 8924267 Hose, Governor Fuel Rod Cover To Cylinder head 2.703006 2 2 4 4$4.79100+
Details View Images 5104592 Clamp, Governor Fuel Rod To Cylinder Head Hose 2.703008 4 4 8 8$4.09100+
Details View Images 8921930 Bolt, 1/4"-20 X 3/4" (W/Seal Patch), Governor Fuel Rod Cover 2.703000 16 16 32 32$2.80100+
Details View Images 5102479 Cover Assy., Variable Liminting Speed Governor 2.704500A/RA/RA/RA/R$701.1473
Details View Images 5102460 Cover Sub Assy., Governor (2.7050) 2.704508 1A/RA/RA/R$492.733
Details View Images 8921472 Bushing Split, Throttle Shaft (2.7100) 2.704500 1 1 1 1$14.3128
Details 456390 Pin, 1/4" X 3/4" Roll (12.9275) 2.704500 2 2 2 2$6.710
Details View Images 5176557 Seal Ring, Throttle Shaft (2.7140) 2.704510 1 1 2 2$4.5832
Details View Images 5144177 Retainer, Throttle Shaft Seal Ring (2.7150) 2.704511 1 1 2 2$5.9213
Details View Images 5153060 Retainer (Flat), Throttle Shaft Seal Ring (2.7150) 2.704512 1 1 2 2$0.5818
Details View Images 5174429 Retaining Ring, Throttle Shaft Seal Ring (2.7150) 2.704513 1 1 2 2$1.80100+
Details View Images 5102464 Shaft Assy., Governor Throttle (2.7095) 2.704500 1A/RA/RA/R$121.9817
Details 5102462 Shaft Sub Assy., Governor Throttle (2.7095) 2.704514 1 1 2 2$38.710
Details View Images 455297 Pin, 5/32" X 7/8" Spring (12.9270) 2.704515 1 1 2 2$2.0630
Details View Images 5102466 Shaft Assy., Governor Shutdown (2.7115) 2.704500 1A/RA/RA/R$61.038
Details View Images 5143146 Shaft & Lever Governor Cover Sutdown (2.7115) 2.704500 1A/RA/RA/R$51.0936
Details View Images 5127213 Spring, Governor Shutdown Shaft (2.7117) 2.704500 1A/RA/RA/R$11.850
Details View Images 5101691 Seal Ring, Governor Shutdown Shaft (2.7140) 2.704500 1A/RA/RA/R$8.5715
Details View Images 5144178 Retainer, Governor Shutdown Shaft Seal Ring (2.7430) 2.704500 1A/RA/RA/R$2.7764
Details View Images 5151487 Retainer (Flat), Governor Shutdown Shaft Seal Ring (2.7430) 2.704500 1 1 2 2$1.9085
Details View Images 5178581 Retaining Ring, Governor Shutdown Shaft Seal Ring (2.7430) 2.704500 1A/RA/RA/R$0.66100+
GROUP 2.7045 CONTINUED ON NEXT PAGE
