Series 92 Detroit Diesel Engines

TURBOCHARGER - groups: 3.5400 - 3.5417

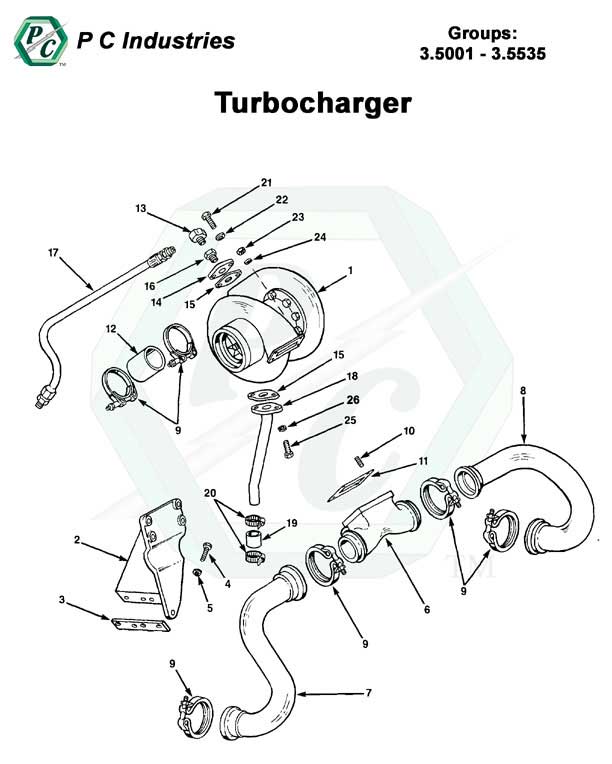

92_turbocharger_pg147-158.jpg - Diagram
Page: 153
Part No. Description Group Ref#6V8V12V16V Price QOH
Details 5106282 Elbow, Turbocharger Air Inlet 3.540000A/RA/RA/RA/R$622.228
Details 8925112 Elbow, Turbocharger Air Inlet 3.540000A/RA/RA/RA/R$37.370
Details View Images 5121182 Plug, 1/4" Pipe (2.4015) 3.540000 1$6.63100+
Details View Images 5121403 Washer, 21/64" (3.4080) 3.540000A/RA/RA/RA/R$6.28100+
Details View Images 5145635 Gasket, Turbocharger Air Inlet Elbow (3.5418) 3.540200A/RA/RA/RA/R$38.324
Details 23511492 Gasket, Turbocharger Air Inlet Elbow (3.1261) 3.540200A/RA/RA/RA/R$13.5810
Details 8920989 Bracket, Turbocharger Air Outlet Tube 3.541500A/RA/RA/RA/R$160.660
Details 5148068 Bracket, Turbocharger Air Outlet Tube 3.541500A/RA/RA/RA/R$10.880
Details 5148068 Bracket, Turbocharger Air Outlet Tube 3.541500A/RA/RA/RA/R$10.880
Details View Images 8927580 Bolt, 3/8"-16 X 7/8" (Seal Patch) (12.9001) 3.451500A/RA/RA/RA/R$4.6559
Details 8927020 Tube, Turbocharger Air Outlet Elbow (3 1/2" X 10.80" L.) 3.541700A/RA/RA/RA/R$40.980
Details View Images 8920831 Tube, Turbocharger Air Outlet Elbow (Dev. L. 13.40") (LB Rear) (OBSOLETE) 3.541700A/RA/RA/RA/ROBSOLETE5
Details 5146773 Tube, Turbocharger Air Outlet Elbow (Dia. 3.50")
Superceded... Click 'Details' for replacement.
3.541700A/RA/RA/RA/R5
Details View Images 5106007 Tube, Turbocharger Air Outlet Elbow 3.541700A/RA/RA/RA/R$81.041
Details 8921126 Tube, Turbocharger Air Outlet Elbow 3.541700A/RA/RA/RA/R$30.010
Details 23501235 Tube, Turbocharger Air Outlet Elbow 3.541700A/RA/RA/RA/R$155.800
Details 5108016 Tube, Turbocharger Air Outlet Elbow (R. Bank) (Dev. L. 28.30") 3.541700A/RA/RA/RA/R$254.230
Details View Images 5108017 Tube, Turbocharger Air Outlet Elbow (L. Bank) (Dev. L. 14.17") 3.541700A/RA/RA/RA/R$197.565
Details 5108020 Tube, Turbocharger Air Outlet Elbow (R. Bank) 3.541700A/RA/RA/RA/R$245.620
23500704 Tube, Turbocharger Air Outlet Elbow (4" I.D. X 8.88") (OBSOLETE) 3.541700A/RA/RA/RA/ROBSOLETE0
Details 8927688 Tube, Turbocharger Air Outlet Elbow (20.15" L.) 3.541700A/RA/RA/RA/R$458.470
Details View Images 5108018 Tube, Turbocharger Air Outlet Elbow (L. Bank) 3.541700A/RA/RA/RA/R$233.000
Details 8927281 Tube, Turbocharger Air Outlet Elbow (Short) 3.541700A/RA/RA/RA/R$64.240
Details 8927287 Tube, Turbocharger Air Outlet Elbow (Long) 3.541700A/RA/RA/RA/R$129.870
Details View Images 23503249 Tube, Turbocharger Air Outlet Elbow (Short) (L.B.) 3.541700A/RA/RA/RA/R$221.891
Details 23503248 Tube, Turbocharger Air Outlet Elbow (Long) (R.B.) 3.541700A/RA/RA/RA/R$262.860
8928796 Tube, Turbocharger Air Outlet Elbow (Dev. L. 13.50") (OBSOLETE) 3.541700A/RA/RA/RA/ROBSOLETE0
Details 8928793 Tube, Turbocharger Air Outlet Elbow (Dev. L. 14.03") 3.541700A/RA/RA/RA/R$268.940
Details 8920735 Tube Assy., Turbocharger Air Outlet Elbow 3.541700A/RA/RA/RA/R$209.430
Details 5148068 Bracket, Tube Support 3.541700A/RA/RA/RA/R$10.880
Details 5143926 Bracket, Tube Support 3.541700A/RA/RA/RA/R$141.590
Details View Images 5188248 Bracket, Slip (7.1606) 3.541700A/RA/RA/RA/R$7.401
Details View Images 5173022 Bracket, Tube Support (5.5379) 3.541700A/RA/RA/RA/R$3.36100+
Details View Images 5143953 Adaptor, Turbocharger Air Outlet 3.541700A/RA/RA/RA/R$312.762
Details 23501234 Tee, Turbocharger Air Outlet Elbow 3.541700A/RA/RA/RA/R$267.960
GROUP 3.5417 CONTINUED ON NEXT PAGE
