Series 92 Detroit Diesel Engines

TURBOCHARGER - groups: 3.5417 - 3.5500

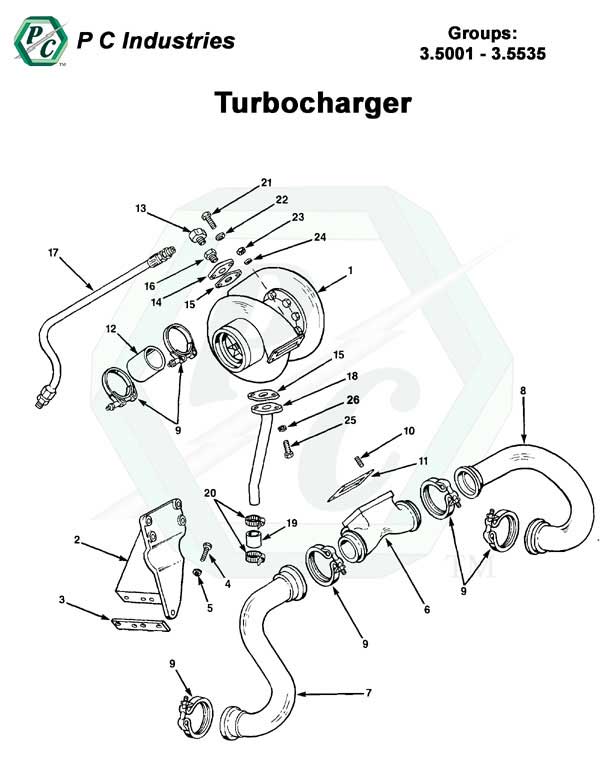

92_turbocharger_pg147-158.jpg - Diagram
Page: 154
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 8920951 Elbow, Turbocharger Air Outlet (R. Bank Turbo) 3.541700A/RA/RA/RA/R$231.912
Details View Images 5100765 Elbow, Turbocharger Air Outlet 3.541700A/RA/RA/RA/R$232.485
Details 8927287 Elbow, Turbocharger Air Outlet 3.541700A/RA/RA/RA/R$115.000
Details View Images 23511492 Gasket, Turbocharger Air Outlet (3.1261) 3.541700A/RA/RA/RA/R$6.358
Details View Images 5162888 Hose, 3 1/2" I.D. X 2 1/4" L.(3.5420) 3.541712A/RA/RA/RA/R$14.122
Details View Images 5147912 Clamp, 3 1/2" Hose (3/4" Wide) (3.5420) 3.541700A/RA/RA/RA/R$14.437
Details View Images 23511492 Gasket, Turbocharger Air Outlet Elbow (3.1261) 3.541800A/RA/RA/RA/R$6.358
Details View Images 23506595 Hose, Turbocharger Air Outlet Connection 2 1/2" I.D. X 2 3/8" L. 3.542012A/RA/RA/RA/R$21.066
Details View Images 23515258 Hose, Turbocharger Air Outlet Connection 3.50" I.D. X 2.92" L. 3.542012A/RA/RA/RA/R$54.164
Details View Images 23504471 Hose, Turbocharger Air Outlet Connection 3.50" I.D. X 3.50" L. 3.542012A/RA/RA/RA/R$43.014
Details 8926957 Hose, Turbocharger Air Outlet Connection 4" I.D. X 2 3/8" L.
Superceded... Click 'Details' for replacement.
3.542015A/RA/RA/RA/R0
Details View Images 23504475 Hose, Turbocharger Air Outlet Connection 4 1/4" I.D. X 3" L. 3.542012A/RA/RA/RA/R$43.064
Details View Images 8920831 Tube, Turbocharger Air Outlet Connection (LB.) (Rear) 3.542012A/RA/RA/RA/R$205.006
Details 8927020 Tube, Turbocharger Air Outlet Connection 3.1/2" I.D. X 10.80" L. 3.542012A/RA/RA/RA/R$40.840
Details View Images 5147911 Clamp, 3 1/2" Hose (1/2" Wide) 3.542009A/RA/RA/RA/R$23.674
Details 23511802 Clamp, 3 1/2" Hose (3.5400) 3.542009A/RA/RA/RA/R$3.210
Details View Images 8926958 Clamp, 4" Hose 3.542009A/RA/RA/RA/R$18.362
Details 91031173 Hose, Turbocharger Air Inlet Connection 3.542400A/RA/RA/RA/R$22.480
91031103 Hose, Turbocharger Air Inlet Connection (OBSOLETE) 3.542400A/RA/RA/RA/ROBSOLETE0
Details View Images 5147911 Clamp, 3 1/2" Hose (1/2"W.) 3.542400A/RA/RA/RA/R$23.674
8926965 Insert, Air Box (OBSOLETE) 3.545000A/RA/RA/RA/ROBSOLETE1
Details 5199575 Hose, Bulk (#6 X 25 Ft.) (12.8550) 3.550000A/RA/RA/RA/R$240.040
Details 5131803 Hose Assy., #6 X 52.5" L. (2.5050) 3.550017A/RA/RA/RA/R$147.180
Details 5103511 Hose Assy., #6 X 57.79" L. 3.550017A/RA/RA/RA/R$145.040
Details 8921163 Hose Assy., #6 X 45" L. 3.550017A/RA/RA/RA/R$140.390
Details 8923538 Hose Assy., #6 X 35.60" L. 3.550017A/RA/RA/RA/R$77.990
CAAC0300 Hose Assy., #6 X 35.50" L. (OBSOLETE) 3.550017A/RA/RA/RA/ROBSOLETE0
Details CAAC0530 Hose Assy., #6 X 56.55" L. 3.550017A/RA/RA/RA/R$87.170
Details View Images CAAC0335 Hose Assy., #6 X 37.05" L. 3.550017A/RA/RA/RA/R$72.930
Details View Images 8924060 Hose Assy., #6 X 37.60" L. (Banded Color Code: White) 3.550017A/RA/RA/RA/R$40.0011
5110183 Hose, 3/8" X 58" L. (2.5217) (OBSOLETE) 3.550000A/RA/RA/RA/ROBSOLETE0
5145531 Hose Assy., #6 X 73" L. (2.5100) (OBSOLETE) 3.550000A/RA/RA/RA/ROBSOLETE0
Details 5189176 Hose, 3/8" X 64 5/16" (2.5110) 3.550000A/RA/RA/RA/R$125.850
5133206 Hose Assy., #6 X 74" L. (OBSOLETE) 3.550017A/RA/RA/RA/ROBSOLETE0
Details 8924368 Hose Assy. 3.550017A/RA/RA/RA/R$104.760
GROUP 3.5500 CONTINUED ON NEXT PAGE
