Series 92 Detroit Diesel Engines

BREATHERS - groups: 4.8045 - 4.8183

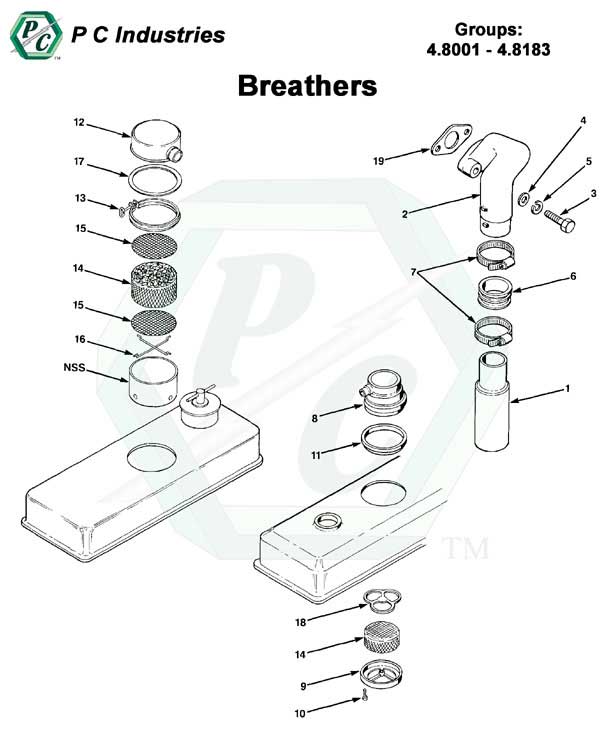

92_breather_pg202-206.jpg - Diagram
Page: 206
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 5110384 Breather Assembly 4.804500A/RA/RA/RA/R$161.876
Details View Images 2443795 Cover, Breather Shell (4") (4.8055)
Superceded... Click 'Details' for replacement.
4.804512 1 1 1 115
Details View Images 5104265 Clamp, Breather Shell (4.8055) 4.804513 1 1 1 1$15.254
Details View Images 5101760 Element, Breather Oil Separator Filter Unit (4.8060) 4.804514 1 1 1 1$19.76109
Details View Images 5132042 Screen, Filter Unit Breather (4.8060) 4.804515 2 2 2 2$68.693
Details View Images 5131951 Retainer, Filter Unit Breather (4.8060) 4.804516 2 2 2 2$25.565
Details 23515215 Shell Assy., Breather (Alum.) (Includes Tube)
Superceded... Click 'Details' for replacement.
4.805508A/RA/RA/RA/R2
Details View Images 5108183 Shell Assy., Breather 4.805508A/RA/RA/RA/R$272.7417
Details View Images 5103647 Retainer, Breather 4.805509A/RA/RA/RA/R$8.41143
Details View Images 5103642 Screw, #10-24 X .375" Lock 4.805510A/RA/RA/RA/R$1.22181
Details 5103646 Gasket, Breather Shell Cover 4.805711A/RA/RA/RA/R$5.2023
Details 23505521 Gasket, Breather Shell Cover 4.805711A/RA/RA/RA/R$4.1111
Details View Images 5101760 Element, Breather Oil Separator Filter Unit 4.806014 1 1 1 1$19.76109
Details View Images 5132042 Screen, Breather Oil Spearator Filter Unit 4.806015 2 2 2 2$68.693
Details View Images 5131951 Retainer, Breather Oil Separator Filter Unit 4.806016 2 2 2 2$25.565
Details View Images 5103636 Reatiner, Breather Element Filter Unit 4.806018 1 1 1 1$16.6989
Details View Images 5144038 Gasket, Breather Body Or Separator 4.807017 2 2 2 2$1.9218
Details View Images 5130349 Gasket, Breather Body Or Separator (1.1085) 4.807017 1 1 1 1$1.8647
5137962 Tube, Breather Extension Pipe (OBSOLETE) 4.817000A/RA/RA/RA/ROBSOLETE0
Details View Images 5129216 Clamp, Breather Extension Pipe (1 1/4") (2.7850) 4.817000A/RA/RA/RA/R$27.931
Details View Images 186618 Bolt, 5/16"-18 X 5/8" (12.9001) 4.817000A/RA/RA/RA/R$1.025
Details View Images 120392 Washer, 9/32" (12.9190) 4.817000A/RA/RA/RA/R$0.8934
Details View Images 103320 Lockwasher, 5/16" (12.9200) 4.817000A/RA/RA/RA/R$0.43487
Details 5118379 Hose, Breather Extension (4.8715) 4.817500A/RA/RA/RA/R$16.760
Details View Images 5184291 Clip, 1 1/4", 3/8" Bolt, (8.3820) 4.817500A/RA/RA/RA/R$4.296
Details View Images 186618 Bolt, 5/16"-18 X 5/8" (12.9001) 4.817500A/RA/RA/RA/R$1.025
Details View Images 120392 Washer, 9/32" (12.9190) 4.817500A/RA/RA/RA/R$0.8934
Details View Images 103320 Lockwasher, 5/16" (12.9200) 4.817500A/RA/RA/RA/R$0.43487
Details View Images 5176400 Bracket, Breather Extension Clip (4.8010) 4.818300A/RA/RA/RA/R$20.815
CONTINUE TO NEXT PAGE FOR GROUP 5.1001
