Series 92 Detroit Diesel Engines

CYLINDER KITS USED WITH OPTION TYPE # 464.
- group: 1.6182

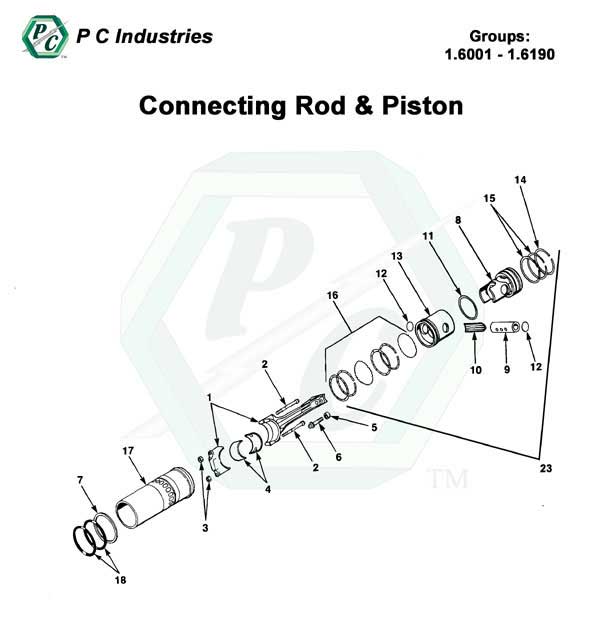

92_connecting_rod_pg19-38.jpg - Diagram
Page: 31
Information   Abbreviations   Alphabetical Index   Group Index
Part No. Description Group Ref#6V8V12V16V Price QOH
The Cylinder Kit Below Is Used With Option Type # 464
Details View Images 23524198 Cylinder Kit, Std., 18:1, 1.75" Piston Pin
(.85" Port Ht., 20° Port Angle) (Brushed Liner Ports) 		1.618200A/RA/RA/RA/R$440.530
Details View Images 23508383 Liner, Cylinder, Standard
(.85" Port Ht., 20° Port Angle) (Brushed Liner Ports) 		1.618217 1 1 1 1$367.82100+
Details 23504896 Dome Kit, 92 Piston 18:1, Turbo, 1.75" Pin 1.618200 1 1 1 1$163.640
Details 23504284 Crown, Piston, 18:1, Turbo, 1.75" Pin (1.6110) 1.618208 1 1 1 1$102.390
Details View Images 23503524 Seal Ring, Crosshead, 1.75" Pin (1.6106) 1.618211 1 1 1 1$4.930
Details View Images 23503522 Bearing, 1.75" Piston Pin (Slipper Type) (1.6142) 1.618210 1 1 1 1$77.000
Details View Images 23503518 Pin, Piston, 1.75" Hollow Core (1.6140) 1.618209 1 1 1 1$59.320
Details View Images 23503521 Retainer, 1.75" Piston Pin (1.6150) 1.618212 2 2 2 2$18.7716
Details View Images 23512247 Skirt, Crosshead 1.75" Pin (1.6110)
Superceded... Click 'Details' for replacement. 		1.618213 1 1 1 10
Details View Images 23524349 Ring Set, Piston (Wide Gap Fire Ring) (1.6115) 1.618200 1 1 1 1$128.41100+
Details View Images 23524192 Ring, Top Fire (Wide Gap) (6.6120) 1.618214 1 1 1 1$36.895
Details View Images 8923113 Ring, Compression (2nd and 3rd Grooves) (1.6120) 1.618215 2 2 2 2$10.967
Details View Images 23524350 Ring Set, Oil Control (For One Piston) (1.6130) 1.618216 1 1 1 1$35.6428
CONTINUE TO NEXT PAGE FOR CYLINDER KITS IN GROUP 1.6182
