Series V 71 Detroit Diesel Engines

BLOWER - groups: 3.4103 - 3.4180

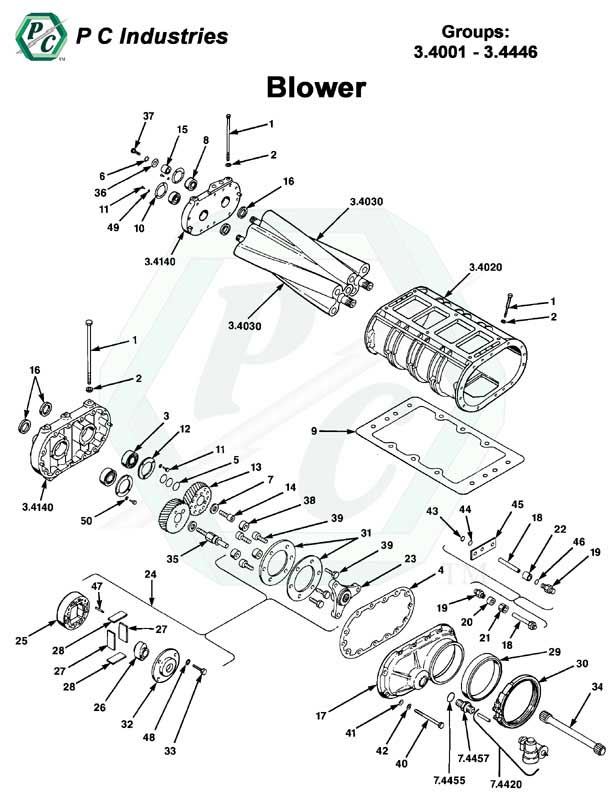

V71_blower_pg103-109.jpg - Diagram
Page: 107
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 5117090 Sprocket, Blower Rotor Gear Drive (Rear Blower) 3.4103001$263.8010
Details View Images 5117082 Spacer, Blower Rotor Gear Drive Sprocket (Rear Blower) 3.4103001$13.96156
Details View Images 5117081 Bolt, 1/2"-20 X 1 1/4" (3.4080) 3.4103001$6.3323
Details View Images 5103361 Sprocket, Blower Rotor Gear Drive (Front Blower) 3.4105001$266.669
Details View Images 5103364 Bolt, 1/2"-20 X 1.10" Special Blower Gear (3.4080) 3.4105003$11.8069
Details View Images 5117091 Chain, Blower Rotor Gear Sprocket Coupling (1 1/4" X 10.28" L.) 3.4107001$252.0914
Details View Images 5154401 Disc, Blower Rotor Fuel Pump 3.411036A/RA/RA/RA/R$24.5012
Details View Images 8924426 Disc, Blower Rotor Fuel Pump 3.411036A/RA/RA/RA/R$43.7127
Details View Images 182776 Bolt, 1/2"-20 X 1 1/4" (12.9001) 3.4110371122$1.2210
Details View Images 5154398 Lockwasher, 1/2" (3.4080) 3.411006A/RA/RA/RA/R$0.5724
Details View Images 8925674 Spacer, Blower Rotor Fuel Pump Coupling Disc 3.411215A/RA/RA/RA/R$43.7820
To Identify Blower Rotor Gear Hubs Go To The BLOWER DRIVE Section
Details View Images 8920764 Plate, Rotor Gear Hub (Rear Of Front Blower) (Turbo) 3.4135312244$3.6687
Details View Images 8923571 Bolt, 3/8"-24 X .925" (12.9001) 3.413539661212$2.0880
Details View Images 8920765 Plate, Rotor Gear Hub (Front Of Front Blower) 3.41353122$3.6274
Details View Images 8923569 Bolt, 5/16"-24 X .75" Lock (To Hub) (12.9001) 3.41353933$8.3321
Details View Images 8923570 Bolt, 5/16"-24 X 1" Lock (To Gear) (12.9001) 3.41353933$4.8533
Details View Images 5173364 Spacer, Blower Gear 3.41373833$1.7426
Details View Images 8920763 Spacer, Blower Rotor Gear Hub 3.413700A/RA/R$1.159
To Identify The Correct Blower End Plates,
Contact PC Industries With Engine Serial Number
Details View Images 5150542 Pin, .308" X 2" Dowel 3.414000A/RA/RA/RA/R$4.34107
Details View Images 5138710 Seal, Blower End Plate (Std.) 3.4160164488$3.8210
Details 5192438 Seal, Blower End Plate O.S. (Non-Turbo)
(Use W/5192439 Spacer In 3.4163)
3.416016A/RA/RA/RA/R$2.7858
Details View Images 8924453 Seal, Blower End Plate O.S. (Turbo)
(Use W/5192439 Spacer In 3.4163)
Superceded... Click 'Details' for replacement.
3.416016A/RA/RA/RA/R24
Details View Images 23500533 Seal Kit, Blower End Plate 3.4160001122$33.7030
Details View Images 8924453 Seal, Blower End Plate O.S.
Superceded... Click 'Details' for replacement.
3.416016444424
Details View Images 5192439 Spacer, Blower Rotor Shaft Oil Seal 3.4160004444$3.3247
Details View Images 5192439 Spacer, Blower Rotor Shaft Oil Seal
(Use W/5192438 Or 8924453 In 3.4160)
3.416300A/RA/RA/RA/R$3.3247
Details View Images 5146328 Cover, Blower Housing End Plate (Stamped) 3.418017A/RA/RA/RA/R$40.9029
Details View Images 5146521 Cover, Blower Housing End Plate (For Tach. Drive; Cast Alum.) 3.418017A/RA/RA/RA/R$76.607
Details View Images 5148179 Cover, Blower Housing End Plate (Cast Alum.) 3.418017A/RA/RA/RA/R$110.026
Details View Images 5196763 Cover, Blower Housing End Plate (Rear Of Rear Blower) (3.4182) 3.418017A/RA/RA/RA/R$254.101
Details View Images 5123450 Cover, Blower Housing End Plate (Stamped)
(Rear Of Front Blower)
3.418017A/RA/RA/RA/R$216.4819
Details View Images 5123445 Cover, Blower Housing End Plate (Stamped)
(Front Of Rear Blower)
3.418017A/RA/RA/RA/R$149.7010
Details View Images 179827 Bolt, 5/16"-18 X 2 1/4" (12.9001) 3.418040A/RA/RA/RA/R$0.8820
Details View Images 179828 Bolt, 5/16"-18 X 2 1/2" (12.9001) 3.418040A/RA/RA/RA/R$5.7268
Details View Images 5159714 Washer, 11/16" X 1/8" (2.7290) 3.418041A/RA/RA/RA/R$1.0667
GROUP 3.4180 CONTINUED ON NEXT PAGE
