Series V 71 Detroit Diesel Engines

BLOWER - groups: 3.4180 - 3.4370

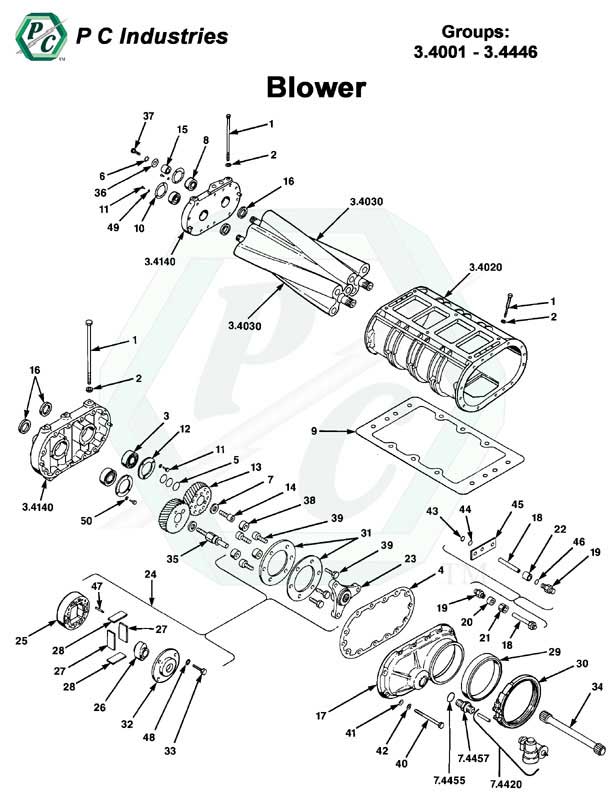

V71_blower_pg103-109.jpg - Diagram
Page: 108
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 103320 Lockwasher, 5/16" (12.9200) 3.418042A/RA/RA/RA/R$0.43499
Details View Images 8924266 Gasket, Blower Housing End Plate Cover 3.419004A/RA/RA/RA/R$2.4193
Details View Images 5117717 Tube, Blower Oil Supply 5/16" X 4.20" L. (4.1660) 3.419218A/RA/RA/RA/R$9.167
Details View Images 23500514 Tube, Blower Oil Supply .25" O.D. X 2.40" L. 3.419218A/RA/RA/RA/R$32.0214
Details View Images 8925045 Adaptor, Blower Oil Supply Tube (4.1660)
Superceded... Click 'Details' for replacement.
3.419219A/RA/RA/RA/R0
Details View Images 5144424 Seal Ring, 5/16" Tube (12.9435) 3.419220A/RA/RA/RA/R$2.15222
Details View Images 8924202 Connector Assy., 5/16" Sealastic (12.9415)
(Includes Seal Ring 5144424 & 114630 Not Sold Seperately)
Superceded... Click 'Details' for replacement.
3.419200A/RA/RA/RA/R0
Details View Images 8924203 Connector Assy., 5/16" Sealastic (12.9415)
(Includes Seal Ring 5144424 & 114630 Not Sold Seperately)
3.419200A/RA/RA/RA/R$24.974
Details View Images 8924143 Connector Assy., 5/16" Ball Sleeve (12.9410) 3.419200A/RA/RA/RA/R$1.555
Details View Images 5124519 O Ring, Blower Oil Supply Tube (3.4350) 3.4192431122$0.9266
Details View Images 5124520 Washer, Blower Oil Supply Tube (3.4180) 3.4192441122$2.183
Details View Images 5124521 Plate, Reinforcement (At Oil Tube) (3.4180) 3.4192451122$13.023
Details View Images 114631 Sleeve, 5/16" Ball (12.9430) 3.419246A/RA/RA/RA/R$1.256
Details View Images 114630 Nut, 5/16" Ball Sleeve (12.9440) 3.419222A/RA/RA/RA/R$1.6264
Details View Images 8922140 Seal, Blower Drive Cover (4.32" X 4.88" X .77") 3.4220291122$4.46224
Details View Images 5146040 Seal, Blower Drive Cover (4.32" X 5.091" X 2.86") 3.42202912$16.1710
Details 8927100 Seal, Blower Drive Cover (4.32" X 5.08" X .69") 3.4220292$11.080
Details 5123257 Reinforcement, Blower Drive Cover Hose (Use W/5146040) 3.42200012$24.5222
Details View Images 5106219 Clamp, Blower Drive Cover Seal (T-Bolt) (12.9660) 3.422730A/RA/RA/RA/R$12.7511
Details View Images 5144877 Clamp, Blower Drive Cover Seal (W/Seal Clips) (12.9660) 3.422730A/RA/RA/RA/R$14.702
To Identify The Components Of The Blower Drive Gear Hub Support
Go To The BLOWER DRIVE Section
View Images 5141473 Coupling, Blower Drive (6V) (48 Teeth) (OBSOLETE) 3.437023A/RA/RA/RA/ROBSOLETE112
Details 8922517 Coupling, Blower Drive (29 Teeth) 3.437023A/RA/RA/RA/R$62.11113
Details View Images 5103377 Coupling Assy., Blower Drive (48 Teeth) 3.437024A/RA/RA/RA/R$56.6388
Details View Images 5150345 Support, Blower Drive Coupling (3.4380) 3.437025A/RA/RA/RA/R$17.23129
Details 5103365 Cam, Blower Drive Coupling (48 Teeth) (3.4390) 3.437026A/RA/RA/RA/R$30.917
Details 5123859 Spring, Blower Drive Coupling (3.4400) 3.437027A/RA/RA/RA/R$0.950
Details 5123860 Seat, Blower Drive Coupling (3.4400) 3.437028A/RA/RA/RA/R$0.86289
Details 5150346 Seat, Blower Drive Coupling Spring (3.4410) 3.437047A/RA/RA/RA/R$2.1164
Details View Images 23503682 Coupling Assy., Blower Drive (29 Teeth) 3.437024A/RA/RA/RA/R$56.784
Details 8926369 Support, Blower Drive Coupling (3.4370) NOT SOLD SEPARATELY
Superceded... Click 'Details' for replacement.
3.437025A/RA/RA/RA/R0
Details 23503681 Cam, Blower Drive Coupling (29 Teeth) (3.4390) 3.437026A/RA/RA/RA/R$35.2573
Details 5123859 Spring, Blower Drive Coupling (3.4400) 3.437027A/RA/RA/RA/R$0.950
Details View Images 8926370 Seat, Blower Drive Coupling (3.4400) 3.437028A/RA/RA/RA/R$4.29116
Details 5150346 Seat, Blower Drive Coupling Spring (3.4410) 3.437047A/RA/RA/RA/R$2.1164
Details View Images 8920765 Plate, Spring 3.437031A/RA/RA/RA/R$3.9860
Details View Images 5173364 Spacer, Blower Drive Coupling (3.4137) 3.437000A/RA/RA/RA/R$6.384
Details View Images 8920763 Spacer, Blower Drive Coupling (3.4137) 3.437000A/RA/RA/RA/R$7.243
GROUP 3.4370 CONTINUED ON NEXT PAGE
