Series V 71 Detroit Diesel Engines

CYLINDER HEAD - groups: 1.2001 - 1.2001

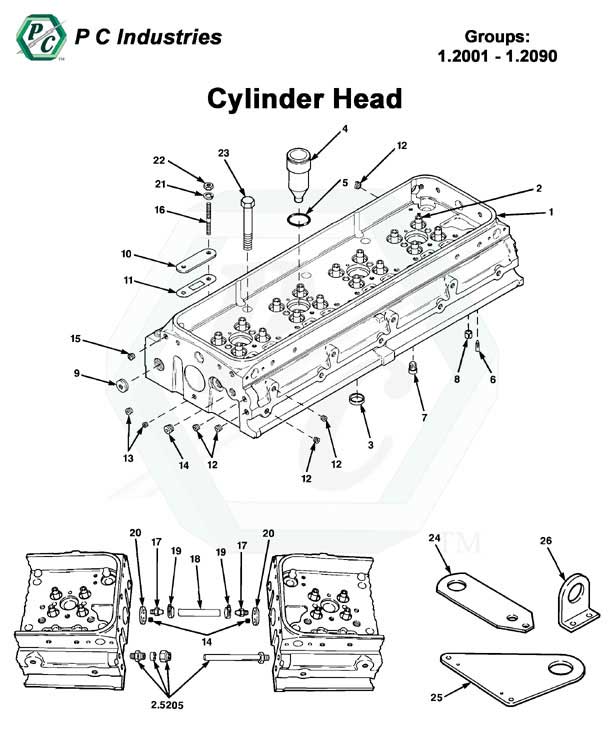

V71_cylinder_head_pg4-6.jpg - Diagram
Page: 5
Part No. Description Group Ref#6V8V12V16V Price QOH
23504263 New Cylinder Head Assembly
(W/ New Valves & Springs Installed) (8V,16V)
1.200100240
Component Quantities Below Are Included In One 23504263 Cylinder Head.
Details 5102771 Head Assy., Cylinder (8V,16V) (4 Valve) (1.2001) 1.20010011$5,101.5946
Note: See Page 4 For Components of 5102771 Cylinder Head Assembly
Details View Images 23500501 Valve Kit, Exhaust (Turbo & Non-Turbo) (4 Valve) (1.8310) 1.2001001616$38.93100+
8922516 Valve, Exhaust (Turbo & Non-Turbo) (4 Valve) (1.8310) 1.20010016160
Details View Images 5111337 Lock, Exhaust Valve Spring (1.8370) 1.2001003232$0.48100+
Details View Images 5147347 Spring, Exhaust Valve (1.8340) 1.2001001616$5.59100+
Details View Images 5117563 Cap, Exhaust Valve Spring (1.8350) 1.2001001616$5.75100+
Details View Images 5117562 Washer, Exhaust Valve Spring Seat (1.8360) 1.2001001616$0.52100+
23504265 New Cylinder Head Assembly
(W/ New Valves & Springs Installed) (12V)
1.20010020
Component Quantities Below Are Included In One 23504265 Cylinder Head.
Details 5102770 Head Assy., Cylinder (12V) (4 Valve) (Industrial) (1.2001) 1.2001001$6,240.2487
Note: See Page 4 For Components of 5102770 Cylinder Head Assembly
Details View Images 23500501 Valve Kit, Exhaust (Turbo & Non-Turbo) (4 Valve) (1.8310) 1.20010024$38.93100+
8922516 Valve, Exhaust (Turbo & Non-Turbo) (4 Valve) (1.8310) 1.200100240
Details View Images 5111337 Lock, Exhaust Valve Spring (1.8370) 1.20010048$0.48100+
Details View Images 5147347 Spring, Exhaust Valve (1.8340) 1.20010024$5.59100+
Details View Images 5117563 Cap, Exhaust Valve Spring (1.8350) 1.20010024$5.75100+
Details View Images 5117562 Washer, Exhaust Valve Spring Seat (1.8360) 1.20010024$0.52100+
Details View Images 5127842 Adaptor, Hose (Between Cylinder Heads 16V) 1.2001174$11.0612
Details View Images 5127843 Hose, 3/8" ID X 1.48" L. (Vent) 1.2001182$3.7150
Details 5146838 Clamp, Hose (12.9660) 1.2001194$3.310
Details View Images 5126389 Plug, Cylinder Head Vent (1/4" Pipe Hole) 1.20012026$26.9820
Details View Images 5103922 Plug, Cylinder Head Vent (3/8" Pipe Hole) 1.200100A/RA/RA/RA/R$41.5333
Details View Images 8927270 Stud, 3/8"-16/24 X 1 11/16" (W/Water Manifolds) (5.2020) 1.200100681216$3.04100+
Details View Images 5152148 Washer, 3/8" X 9/16" (Copper) (2.4050) 1.200100A/RA/RA/RA/R$0.55100+
GROUP 1.2001 CONTINUED ON NEXT PAGE
