P C Industries Quality Commitment Experience Satisfaction

Series V 71 Detroit Diesel Engines

AIR SILENCER - groups: 3.3070 - 3.3270

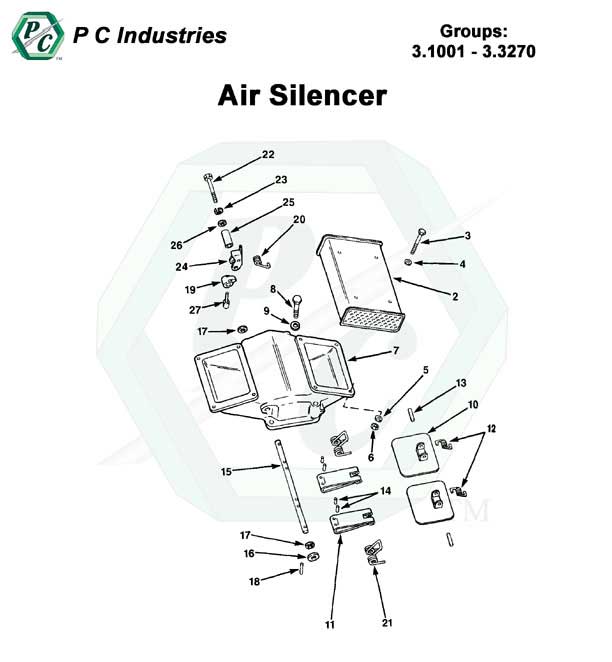

V71_air_silencer_pg95-98.jpg - Diagram
Page: 98
Part No. Description Group Ref#6V8V12V16V Price QOH
Details View Images 5123743 Spring, Air Inlet Housing Shutdown Valve Tension 3.307020A/RA/RA/RA/R$31.239
Details View Images 5119328 Spring, Air Inlet Housing Shutdown Valve Tension 3.307020A/RA/RA/RA/R$36.774
Details View Images 5119327 Spring, Air Inlet Housing Shutdown Valve Tension 3.307020A/RA/RA/RA/R$7.734
Details View Images 5112787 Spring, Air Inlet Housing Shutdown Valve Tension 3.307020A/RA/RA/RA/R$23.427
Details View Images 5111904 Spring, Air Inlet Housing Shutdown Valve Tension 3.307021A/RA/RA/RA/R$9.6923
Details View Images 5128046 Spring, Air Inlet Housing Shutdown Valve Tension 3.307021A/RA/RA/RA/R$25.388
Details View Images 179803 Bolt, 1/4"-20 X 1 3/4" (12.9001) 3.307022A/RA/RA/RA/R$0.5564
Details View Images 5112785 Latch, Air Inlet Housing Shutdown Valve Lever 3.309024A/RA/RA/RA/R$14.7019
Details View Images 5114727 Latch, Air Inlet Housing Shutdown Valve Lever 3.309024A/RA/RA/RA/R$64.815
Details View Images 5109673 Latch, Air Inlet Housing Shutdown Valve Lever 3.309024A/RA/RA/RA/R$64.770
Details View Images 5143836 Bushing, Eccentric 3.3090251122$8.955
Details View Images 5159714 Washer, 11/16" X 1/8" (2.7290) 3.309026A/RA/RA/RA/R$1.1461
Details 5135628 Rod Assy., Air Inlet Housing Shutdown Valve Crossover (20" L.) 3.309500A/RA/RA/RA/R$144.140
Details 5145724 Tube, Air Inlet Housing Shutdown Valve Crossover (23 5/8" L.) 3.3095001$109.290
Details View Images 5145607 Tube, Air Inlet Housing Shutdown Valve Crossover (36 3/4" L.) 3.3095001$96.371
Details View Images 5114848 Bearing, Rod End (2.9730) 3.309500A/RA/RA/RA/R$58.564
Details View Images 273436 Pin, 1/8" X 11/16" Roll (12.9300) 3.309514A/RA/RA/RA/R$0.6133
Details View Images 5114974 Handle Assy., Air Inlet Shutdown Reset Lever 3.311027A/RA/RA/RA/R$7.6810
Details View Images 5147640 Lever Assy., Air Inlet Shutdown Reset 3.311000A/RA/RA/RA/R$41.552
Details View Images 5124371 Lever Assy., Air Inlet Shutdown Reset (2.9410) 3.311000A/RA/RA/RA/R$111.454
5182841 Lever Assy., Air Inlet Shutdown Reset (2.9290) (OBSOLETE) 3.311000A/RA/RA/RA/ROBSOLETE0
Details View Images 5122982 Cam, Air Inlet Housing Shutdown Reset 3.311019A/RA/RA/RA/R$55.7416
Details View Images 455533 Pin, 1/8" X 7/8" Roll (12.9275) 3.311000A/RA/RA/RA/R$1.811
Details View Images 5146946 Wire Assy., Air Inlet Housing Shutdown Control (7 1/4" L.) 3.325000A/RA/RA/RA/R$24.720
Details View Images 5146240 Wire Assy., Air Inlet Housing Shutdown Control (50" L.) 3.325000A/RA/RA/RA/R$24.141
Details View Images 5146239 Wire Assy., Air Inlet Housing Shutdown Control (90" L.) (2.9422) 3.325000A/RA/RA/RA/R$146.511
Details View Images 5146241 Wire Assy., Air Inlet Housing Shutdown Control (90" L. Coated) 3.325000A/RA/RA/RA/R$40.430
Details View Images 5186687 Plate, Air Inlet Housing Shutdown Control (Stop) 3.326000A/RA/RA/RA/R$6.1518
132105 Bolt, #10-32" X 3/8" (12.9010) (OBSOLETE) 3.326000A/RA/RA/RA/ROBSOLETE0
Details View Images 3290569 Clip, Air Inlet Housing Shutdown Control Wire (7.8320) 3.327000A/RA/RA/RA/R$12.0819
Details View Images 3796374 Stop, Air Inlet Housing Shutdown Control Wire Clip (2.9426) 3.327000A/RA/RA/RA/R$0.6512
Details View Images 140855 Screw, #8-32 X 5/16" Set (12.9076) 3.327000A/RA/RA/RA/R$1.861
Details View Images 8927580 Bolt, 3/8"-16 X 7/8" (W/Seal Patch) (12.9001) 3.327000A/RA/RA/RA/R$4.3028
Details View Images 103321 Lockwasher, 3/8" (12.9200) 3.327000A/RA/RA/RA/R$0.35279
CONTINUE TO NEXT PAGE FOR AIR INLET HOUSING IN GROUP 3.3001
