John Deere Parts Catalog

Off Highway Engine Model 4219T
Standard Engine
3.6L 219 Turbo-Diesel L4 4.0157" Bore

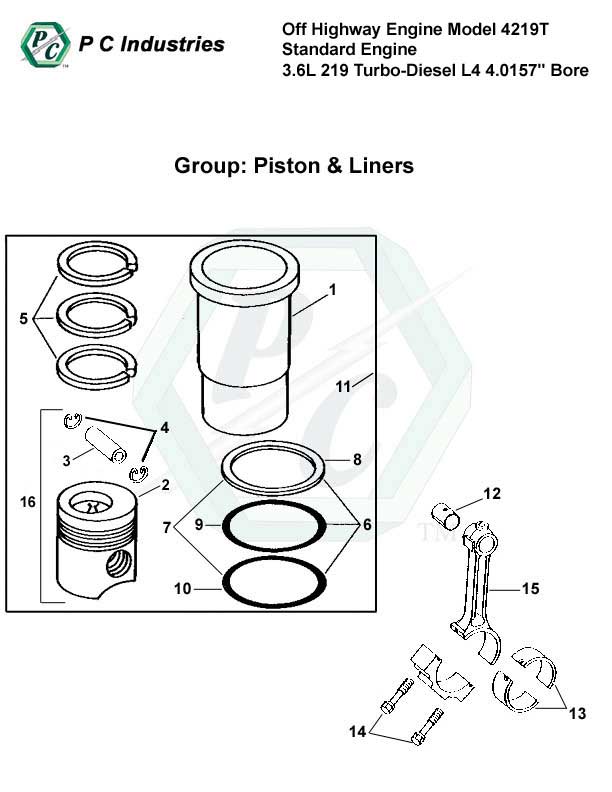

236-237.jpg - Diagram
Page: 220
Part No. Description Group Ref#Qty. Price QOH
Details PC-R116463 Liner, W/O Sealing Rings, Std.; W/O Piston Spray Cooling; O-Rings In Block Pstn/Liner14$85.150
Details PC-T32343 Liner, W/O Sealing Rings, Std.; From Serial # 275,484 Pstn/Liner14$90.260
Details PC-T32343-WS Liner, W/Sealing Rings, Std. Pstn/Liner14$105.830
Details PC-AR78041 Cylinder Kit Complete, Std.; W/Con. Rod Marked R51727; From Serial #
275,484; O-Rings In Block; Pin Dia, 1.38"
Pstn/Liner114$162.996
Details PC-AR71618 Cylinder Liner Sealing Ring Kit Pstn/Liner64$10.840
Details PC-R48637 Sealing Ring, Liner To Serial # 275,483; Rectangle; Top & Bottom Pstn/Liner74$3.780
Details PC-T32341 Sealing Ring, Liner To Serial # 275,483; Round Pstn/Liner94$2.980
Details PC-AR77762 Piston Body, W/O Pin, Std.; From Serial # 275,484 Pstn/Liner24$86.730
Details PC-AR77762-WP Piston Kit, W/Pin & Retainers, Std.; From Serial # 275,484 Pstn/Liner164$147.120
Details PC-R125754 Piston Pin; From Serial # 275,484; 1.38" Pin Dia. Pstn/Liner34$21.600
Details PC-T26149 Piston Pin; To Serial # 275,483 Pstn/Liner34$30.030
Details PC-M41029 Piston Pin Retainer; From Serial # 275,484; For 1.38" Pin Dia. Pstn/Liner48$1.110
Details PC-R51112 Piston Pin Retainer; To Serial # 275,483 Pstn/Liner48$1.160
Details View Images PC-R55647 Piston Pin Bushing; W/Con. Rod Marked R51727, R80034; 1.3765" ID,
1.500" OD, 1.570" O.A.L.
Pstn/Liner124$14.0712
Details PC-T23471 Piston Pin Bushing; W/Con. Rod Marked R81410, T20007; 1.1896" ID,
1.313" OD, 1.570" O.A.L.
Pstn/Liner124$9.4420
Details PC-R80033 Con. Rod Bolt; W/Con. Rod Marked R80032, R80034, R81410, R105011,
R113612; Torque-To-Yield Bolt; Replacement Recommended
Pstn/Liner148$8.8154
OFF HIGHWAY ENGINE 4219T CONTINUED ON NEXT PAGE
