John Deere Parts Catalog

Off Highway Engine Model 6329D
Standard Engine
5.4L 329 OHV Diesel L6 4.0157" Bore

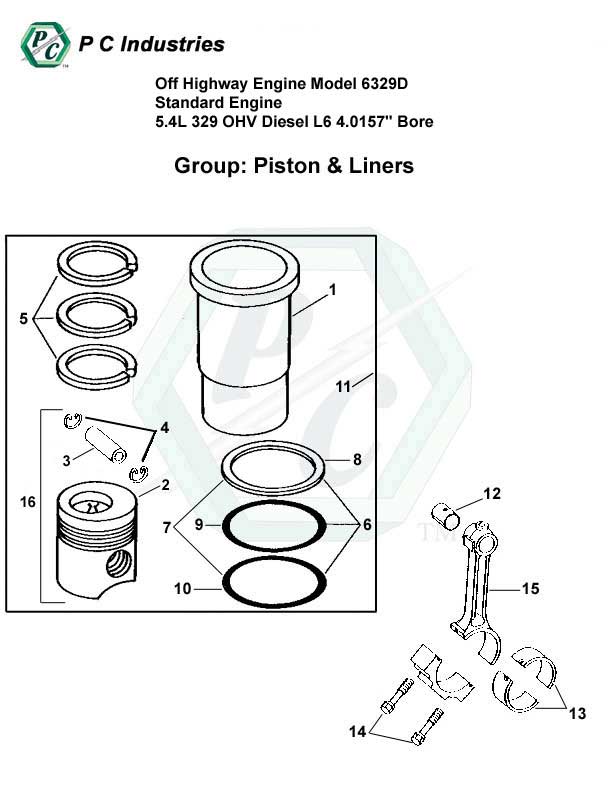

320-321.jpg - Diagram
Page: 318
Part No. Description GroupRef#Qty. Price QOH
Details PC-R116463 Liner, W/O Sealing Rings, Std.; W/O Piston Spray Cooling; O-Rings In Block;
From Serial # 100,001
Pstn/Liner16$45.000
Details PC-R116463 Liner, W/O Sealing Rings, Std.; W/O Piston Spray Cooling; O-Rings In Block;
From Serial # 290,000 To Serial # 621,172
Pstn/Liner16$45.000
Details PC-T32343 Liner, W/O Sealing Rings Std.; From Serial # 277,550 Pstn/Liner16$85.150
Details PC-T32343-WS Liner, W/Sealing Rings, Std.; From Serial # 277,550 Pstn/Liner16$99.830
Details PC-AR51903 Liner, W/Sealing Rings, Std.; To Serial # 277,549 Pstn/Liner16$53.180
Details PC-AR78041 Cylinder Kit Complete, Std.; W/Con. Rod Marked R51727; From Serial
# 277,550; O-Rings In Block; Pin Dia, 1.38"
Pstn/Liner116$115.096
Details PC-AR71593 Cylinder Kit Complete, Std.; W/Con. Rod Marked T20007, R81410;
To Serial # 277,549; O-Rings In Block; Pin Dia. 1.19"
Pstn/Liner116$114.186
Details PC-CK8310-8636 Cylinder Kit Complete, Std.; W/Con. Rod Marked T20007, R81410;
To Serial # 277,549; O-Rings On Liner
Pstn/Liner116$126.646
Details PC-AR71618 Cylinder Liner Sealing Ring Kit Pstn/Liner66$6.210
Details PC-R48637 Sealing Ring, Liner, Rectangle; Top & Bottom Pstn/Liner76$3.780
Details PC-T32341 Sealing Ring, Liner, Round Pstn/Liner96$2.910
Details PC-AR77762 Piston Body, W/O Pin, Std.; From Serial # 277,550 Pstn/Liner26$60.320
Details PC-AR78310 Piston Body, W/O Pin, Std.; To Serial # 277,549 Pstn/Liner26$59.660
Details PC-AR77762-WP Piston Kit, W/Pin & Retainers, Std.; From Serial # 277,550 Pstn/Liner166$138.790
Details PC-AR78310-WP Piston Kit, W/Pin & Retainers, Std.; To Serial # 277,549 Pstn/Liner166$133.040
Details PC-R125754 Piston Pin; From Serial # 277,550; 1.38" Pin Dia. Pstn/Liner36$9.440
Details PC-T26149 Piston Pin; To Serial # 277,549 Pstn/Liner36$4.450
Details PC-M41029 Piston Pin Retainer; From Serial # 277,550; For 1.38" Pin Dia. Pstn/Liner412$0.850
OFF HIGHWAY ENGINE 6329D CONTINUED ON NEXT PAGE
