John Deere Parts Catalog

Marine Engine Model 6125TFM
12.5L 765 (12534cc) OHV Turbo-Diesel L6 127mm Bore

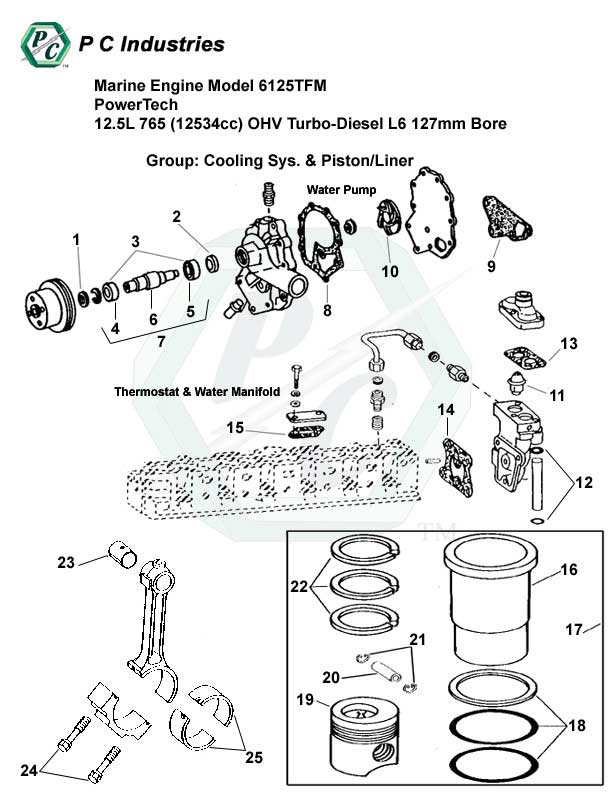

36.jpg - Diagram
Page: 36
Part No. Description Group Ref#Qty. Price QOH
Details PC-R91889 Keeper, Valve; Cylinder Head & Camshaft Codes 5102, 5103 Cyl. Head048$0.4438
Details View Images PC-R105346 Turbocharger Oil Drain Gasket; Turbocharger, Lines, & Pipe Code 6502 Fuel Sys.01$0.801
Details PC-R49697 Turbocharger Mounting Gasket; Turbocharger, Lines, & Pipe Code 6502 Fuel Sys.01$6.900
Details PC-R72328 Turbocharger O-Ring, Return Oil Tube Adapter Seal; Turbocharger, Lines,
& Pipe Code 6502
Fuel Sys.01$0.940
Details PC-JD10362 Ball Bearing, Water Pump, Front; Water Pump Bearing Cooling Sys.51$20.370
Details PC-JD10363 Ball Bearing, Water Pump, Rear; Water Pump Bearing Cooling Sys.41$14.210
PC-RE39134 Oil Seal, Rear, Water Pump Seal Cooling Sys.110
Details View Images PC-RE33705 Thermostat, Upper; Thermostat Code 2207; 180 Deg. Cooling Sys.111$9.601
Details PC-R56192 O-Ring, Auxiliary Drive Adapter; Lines & Cover Code 5202; Flange-To-Flange Seal Cyl. Block01$5.060
Details PC-R72328 O-Ring, Elbow Seal Cyl. Block01$0.940
Details PC-U17409 O-Ring, Oil Cooler Relief Valve Plug Seal; Filter & Housing Code 5901 Cyl. Block03$0.490
Details PC-R35043 Crankshaft, Rear Housing Gasket. Crankshaft01$2.990
Details PC-AR72351 Cylinder Liner Sealing Ring Kit; Piston, Con. Rod, & Cyl. Liner Code 4801 Pstn/Liner186$11.070
Details PC-R64451 Piston Pin; Piston, Con. Rod, & Cyl. Liner Code 4801 Pstn/Liner206$33.450
Details PC-N51168 Piston Pin, Retainer; Piston, Con. Rod, & Cyl. Liner Code 4801 Pstn/Liner2112$3.040
Details PC-R69045 Piston Pin, Bushing; Piston, Con. Rod, & Cyl. Liner Code 4801; W/Con. Rod
Marked R121174, R501566; W/1.999" ID, W/2.187" OD, 2.0512" O.A.L.
Details PC-R66453 Con. Rod, Bolt; Piston, Con. Rod, & Cyl. Liner Code 4801; To Serial # 010513; Rod
Marked R121174; Torque-To-Yield Bolt; Replacement Recommended
