John Deere Parts Catalog

Industrial Engine Model 4045D / 4276D
Standard Engine
4.5L 276 OHV Diesel L4 4.1929 Bore

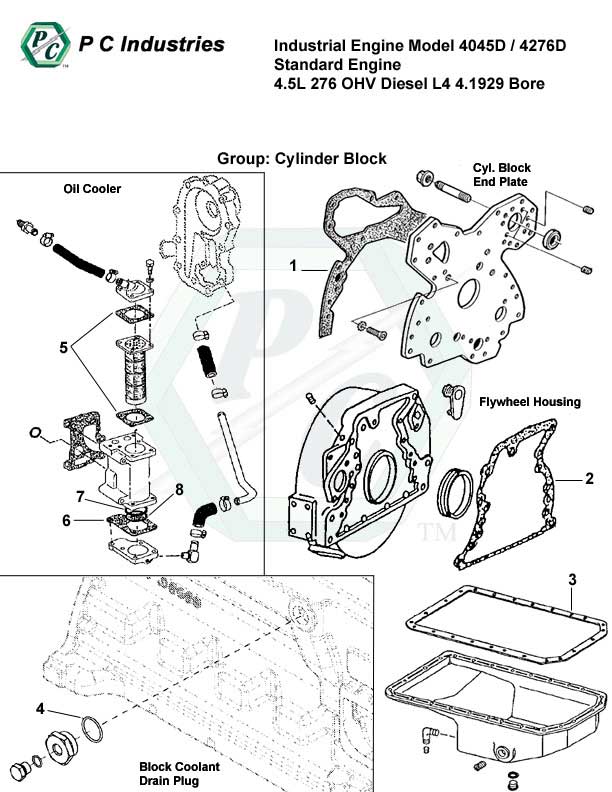

88.jpg - Diagram
Page: 88
Section Menu   Information   Abbreviations
Part No. Description Group Ref#Qty. Price QOH
Details PC-R97351 Flywheel Housing Gasket; Flywheel Housing Code 1425; From Serial # 100,001 Cyl. Block21$11.970
Details PC-R97351 Flywheel Housing Gasket; Flywheel Housing Codes 1410, 1411, 1432 Cyl. Block21$11.970
Details PC-R119360 Oil Pan Gasket; From Serial # 100,001; Manufactured After 1983; Oil Pan Codes
1901, 1902, 1903; W/Cast Iron Oil Pan 		Cyl. Block31$9.310
Details PC-R119360 Oil Pan Gasket; From Serial # 290,000; To Serial # 621,172; Manufactured 1974-83;
Oil Pan Codes 1901, 1903; W/Cast Iron Oil Pan 		Cyl. Block31$9.310
Details View Images PC-R97342 Oil Pan Gasket; Oil Pan Code 1904; W/Stamped Oil Pan Cyl. Block31$21.210
Details PC-U13639 O-Ring, Block Coolant Drain Plug Seal; 1.475" X .118" Cyl. Block41$0.600
Details View Images PC-AR101549 Water Pump Oil Seal Kit; W/Pump Housing Marked R55164, R90783 Cyl. Block01$16.131
Details View Images PC-R131794 Block To End Plate, Front Gasket; From Serial # 100,001; Manufactured After 1983 Cyl. Block11$12.150
Details View Images PC-R131794 Block To End Plate, Front Gasket; From Serial # 290,000; To Serial # 621,172;
Manufactured 1974-83 		Cyl. Block11$12.150
Details PC-PG219CS Gasket Conversion Set; Wear Sleeve Included Cyl. Block01$135.530
Details View Images PC-PG219S In-Frame Gasket Set Cyl. Block01$119.931
Details View Images PC-RE37715 Complete Overhaul Gasket Set; Crankshaft Seals Not Included Cyl. Block01$172.341
Details PC-RE37715-WS Complete Overhaul Gasket Set; Including Crankshaft Seals; Rear Main Bearing Seal
Included; Wear Sleeve Not Included 		Cyl. Block01$193.950
Details PC-R57160S Balance Shaft Set Cyl. Block01$38.640
Details View Images PC-R57160 Balance Shaft, Bearing Cyl. Block06$6.420
Details View Images PC-R98486 Oil Cooler Gasket; From Serial # 100,001; Manufactured After 1983 Cyl. Block51$0.930
Details View Images PC-R98487 Oil Cooler Gasket; From Serial # 100,001; Manufactured After 1983; Lower Oil
Cooler Cover 		Cyl. Block61$1.570
Details View Images PC-R98486 Oil Cooler Gasket; From Serial # 290,000; To Serial # 621,172;
Manufactured 1974-83 		Cyl. Block51$0.930
Details View Images PC-R98487 Oil Cooler Gasket; From Serial # 290,000; To Serial # 621,172; Manufactured
1974-83; Lower Oil Cooler Cover 		Cyl. Block61$1.570
Details PC-A4730R O-Ring, Oil Cooler To Block Check Valve Seal; From Serial # 100,001;
Manufactured After 1983 		Cyl. Block01$0.470
Details PC-A4730R O-Ring, Oil Cooler To Block Check Valve Seal; From Serial # 290,000; To Serial #
621,172; Manufactured 1974-83; 		Cyl. Block01$0.470
Details PC-R56814 O-Ring, Oil Cooler Housing Inner Seal; From Serial # 100,001; Manufactured
After 1983 		Cyl. Block71$2.600
Details PC-R56814 O-Ring, Oil Cooler Housing Inner Seal; From Serial # 290,000; To Serial # 621,172;
Manufactured 1974-83 		Cyl. Block71$2.600
Details PC-R56815 O-Ring, Oil Cooler Housing Inner Seal; From Serial # 290,000; To Serial # 621,172;
Manufactured 1974-83 		Cyl. Block81$1.440
Details PC-R56815 O-Ring, Oil Cooler Housing Outer Seal; From Serial # 100,001; Manufactured
After 1983 		Cyl. Block81$1.440
INDUSTRIAL ENGINE 4045D / 4276D CONTINUED ON NEXT PAGE
