Series 149 Detroit Diesel Engines

VARIABLE SPEED GOVERNOR - groups: 2.7265 - 2.7270

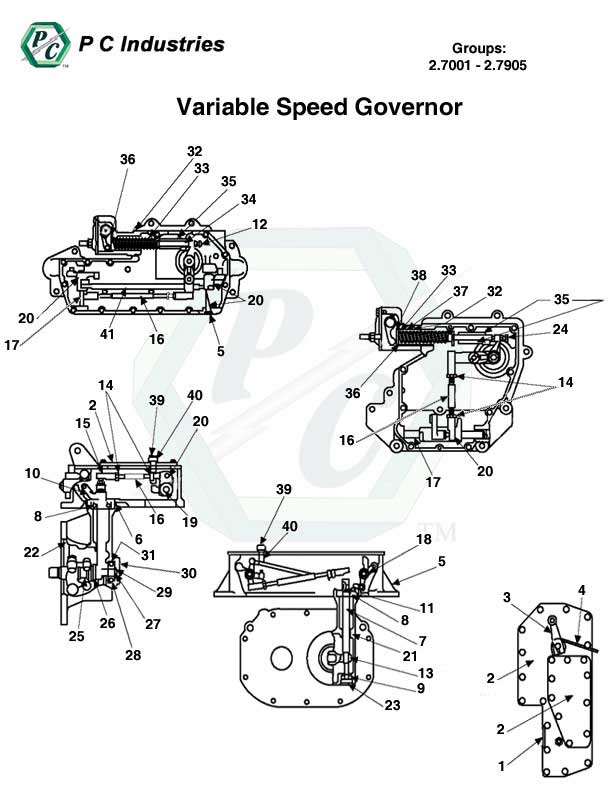

2.7001 - 2.7905 Variable Speed Governor.jpg - Diagram

Page: 110

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	12V	16V	Price	QOH
Details	186647	Bolt, 1/4"-20 X 1"	2.7165	00	A/R	A/R	$0.63	15
Details	5102861	Lever; (Option Type #1865)	2.7165	00		1	$64.16	1
Details	8920651	Lever; (Option Type #'s 1206, 1208, 1522, 1860, 1862)	2.7165	00	A/R	A/R	$115.50	0
Details	103319	Lockwasher, 1/4"	2.7165	00	A/R	A/R	$0.40	100+
Details	8920651	Lever	2.7170	03	A/R	A/R	$115.50	0
Details	5151519	Lever; (2.7170)	2.7170	03	A/R	A/R	$75.04	12
Details	5165211	Spacer, 1/2" X 9/16" Pipe; (4.8001)	2.7170	00	A/R	A/R	$22.13	0
Details	5155782	Clip, 3/16" Tube, 1/4" Bolt; (7.8320)	2.7170	00	A/R	A/R	$4.78	0
Details	186647	Bolt, 1/4"-20 X 1"	2.7170	00	A/R	A/R	$0.63	15
Details	5145842	Bolt, 5/16" -24 X 1.75"	2.7170	00	A/R	A/R	$5.95	0
Details	103319	Lockwasher, 1/4"	2.7170	00	A/R	A/R	$0.40	100+
Details	103320	Lockwasher, 5/16"	2.7170	00	A/R	A/R	$0.07	100+
Details	120376	Nut, 5/16"-18	2.7170	00	A/R	A/R	$2.08	24
	5139472	Spring; (Option Type #967) (OBSOLETE)	2.7210	04	1		OBSOLETE	0
Details	5143529	Spring	2.7210	04	A/R	A/R	$12.01	3
	5139798	Housing Assembly; (Option Type #'s 966 & 967) (OBSOLETE)	2.7230	05	1		OBSOLETE	0
Details	5143135	Housing Assembly	2.7230	05	A/R	A/R	$3,486.44	0
Details	148426	Bearing; (Option Type #"s 966 & 967)	2.7230	00	2		$41.00	0
Details	9428212	Bearing; (2.7230)	2.7230	00	A/R	A/R	$10.10	14
Details	8927581	Bolt, 3/8"-16 X 1.135"; (12.9001)	2.7230	00	A/R	A/R	$7.64	100+
Details	8925048	Connector, 3/8" Inverted Flared Tube; (12.9460)	2.7230	00	A/R	A/R	$8.03	2
Details	8925002	Elbow, 90� 1/2" Pipe, Inverted Flared; (12.9480)	2.7230	00	A/R	A/R	$13.88	0
Details	103321	Lockwasher, 3/8"	2.7230	00	A/R	A/R	$0.17	100+
Details	103026	Nut, 3/8"-24	2.7230	00	A/R	A/R	$0.97	100+
Details	5150942	Pin, 3/16" X 7/16" Dowel; (2.7230)	2.7230	00	A/R	A/R	$1.29	100+
Details	8925721	Tee, 3/8"-18 Pipe; (12.9616)	2.7230	00	A/R	A/R	$9.49	2
Details	103341	Washer, 3/8"	2.7230	00	A/R	A/R	$0.40	100+
Details	6525206	Seal Ring, 2.25" I.D.; (2.7232)	2.7232	06	A/R	A/R	$9.20	43
Details	8928537	Key, 3/32" X 1/2" Woodruff; (12.9350)	2.7255	00	A/R	A/R	$1.14	30
Details	5138489	Shaft	2.7255	07	A/R	A/R	$196.41	0
Details	23505169	Bearing	2.7260	08	A/R	A/R	$26.92	5
Details	9424226	Ring, Retaining; (2.7260)	2.7260	00	A/R	A/R	$4.96	1
Details	5158631	Shim; 0.031" Thick; (8.1630)	2.7260	00	A/R	A/R	$2.06	0
Details	9436682	Bearing; (Lower)	2.7270	09	A/R	A/R	$15.59	100+
	CONTINUE TO NEXT PAGE FOR GROUP 2.7280
