Series 149 Detroit Diesel Engines

FAN & FAN HUB - group: 5.4017

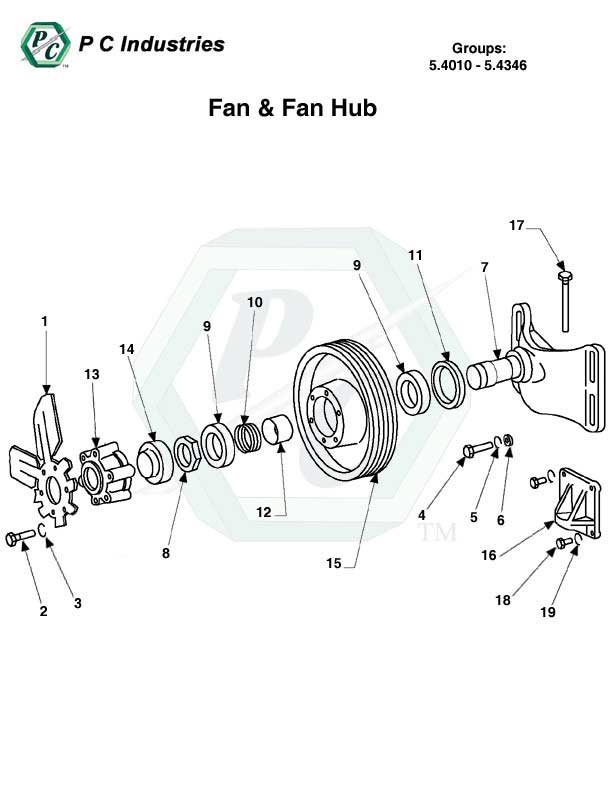

5.4010 - 5.4346 Fan And Fan Hub.jpg - Diagram

Page: 289

Information Abbreviations Alphabetical Index Group Index

	Part No.	Description	Group	Ref#	8V	12V	16V	20V	Price	QOH
Details	CCHH0420	Hose Assembly, #10 X 45.00" L; H&H Fc234	5.4017	00	A/R	A/R	A/R	A/R	$98.95	0
Details	CCHH0441	Hose Assembly, #10 X 46.27" L.	5.4017	00	A/R	A/R	A/R	A/R	$95.08	0
Details	CCHH0556	Hose Assembly, #10 X 58.60" L.	5.4017	00	A/R	A/R	A/R	A/R	$122.51	0
Details	5133163	Hose Assembly, #4 X 21"; (12.4065)	5.4017	00	A/R	A/R	A/R	A/R	$77.26	0
Details	23508449	Hose Assembly, #4 X 21.58 H&H	5.4017	00	A/R	A/R	A/R	A/R	$28.41	0
Details	5131146	Hose Assembly, #4 X 25" L., R.B.; (12.4065)	5.4017	00	A/R	A/R	A/R	A/R	$75.13	1
Details	23508459	Hose Assembly, #4 X 25.58"L.	5.4017	00	A/R	A/R	A/R	A/R	$34.65	0
Details	23508484	Hose Assembly, #4 X 31.41" L.	5.4017	00	A/R	A/R	A/R	A/R	$47.54	0
Details	5116929	Hose Assembly, #4 X 41" L.; (3.5500)	5.4017	00	A/R	A/R	A/R	A/R	$75.40	0
Details	23508482	Hose Assembly, #4 X 41.58" L.	5.4017	00	A/R	A/R	A/R	A/R	$36.94	0
Details	AAAA0390	Hose Assembly, #6 X 42.30" L.; A&A	5.4017	00	A/R	A/R	A/R	A/R	$66.59	0
Details	CAHH0438	Hose Assembly, #6 X 46.10" L.	5.4017	00	A/R	A/R	A/R	A/R	$129.51	0
Details	5126693	Hose Assembly, 3/16" X 29" L.; (12.4065)	5.4017	00	A/R	A/R	A/R	A/R	$77.89	0
Details	23505499	Sensor, Temperatuer; (120�-130�); (5.4017)	5.4017	00	A/R	A/R	A/R	A/R	$972.01	0
Details	23505498	Sensor, Temperature; (180�-190�); (5.4017)	5.4017	00	A/R	A/R	A/R	A/R	$934.58	0
Details	23505501	Solenoid Control Assembly; Fan 02-34072; (5.4017)	5.4017	00	A/R	A/R	A/R	A/R	$529.17	0
	23513499	Control Harness Assembly; (Option Type #'s 1761 & 1790)	5.4017	00	1	1	1	1		0
Details	23505497	Control, Dual Temp	5.4017	00	A/R	A/R	A/R	A/R	$1,922.20	0
Details	23503180	Plate, Oil Pan Cover, L.B. & R.B. Front Upper Oil Pan	5.4017	00	A/R	A/R	A/R	A/R	$66.82	0
Details	8923210	Bracket, 90� 7/16" Slot, 3/8" Bolt Hole	5.4017	00	A/R	A/R	A/R	A/R	$19.14	1
Details	23507452	Bracket, Solenoid Mounting	5.4017	00	A/R	A/R	A/R	A/R	$62.53	0
Details	5166565	Bracket; (9.1591); (Option Type #'s 1774, 1805, 1819, 1826)	5.4017	00	1	1	1	1	$3.98	0
Details	8924174	Adaptor, 1/2"-14 Pipe; (12.9565); (Option Type #'s 1774, 1778, 1805)	5.4017	00	A/R	A/R	A/R	A/R	$20.36	4
Details	8924172	Adaptor, 1/4"-18 Pipe; (12.9565); (Option Type #'s 1774, 1778, 1805)	5.4017	00	1	1	1	1	$9.67	14
Details	8924173	Adaptor, 3/8"-18 Pipe; (12.9565)	5.4017	00	A/R	A/R	A/R	A/R	$6.67	14
Details	9427945	Bolt, 1/2"-13 X 6.25"; (12.9001) (OBSOLETE)	5.4017	00	A/R	A/R	A/R	A/R	OBSOLETE	1
Details	8925519	Bolt, 1/4"-28 X 0.62"; (12.9001)	5.4017	00	A/R	A/R	A/R	A/R	$3.28	0
Details	179839	Bolt, 3/8"-16 X 1"	5.4017	00	A/R	A/R	A/R	A/R	$0.69	15
Details	8927580	Bolt, 3/8"-16 X 1.015"; (12.9001)	5.4017	00	A/R	A/R	A/R	A/R	$4.55	95
Details	8927581	Bolt, 3/8"-16 X 1.135"; (12.9001)	5.4017	00	A/R	A/R	A/R	A/R	$7.64	100+
	GROUP 5.4017 CONTINUED ON NEXT PAGE
