Series 149 Detroit Diesel Engines

SHUT-OFF & ALARM SYSTEM - groups: 7.4510 - 7.4512

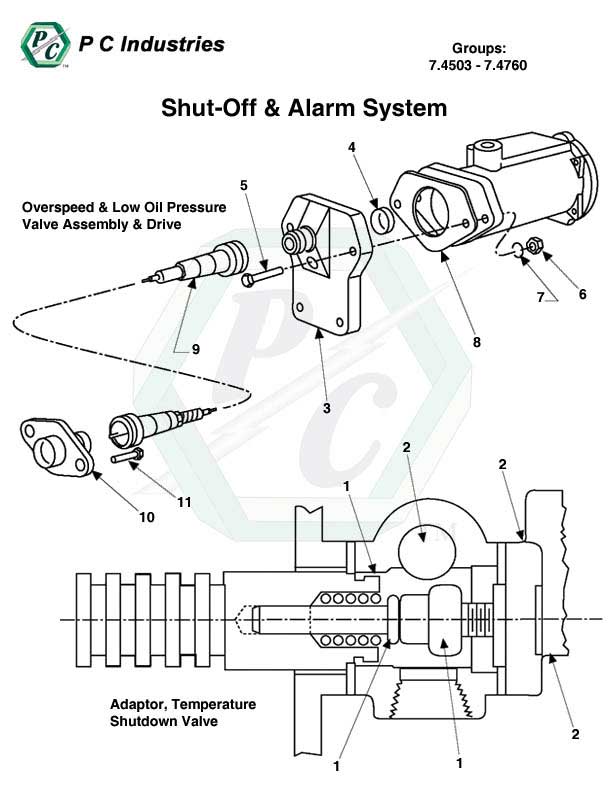

7.4503 - 7.4760 Shut-Off And Alarm System.jpg - Diagram
Page: 327
Part No. Description Group Ref#8V12V16V20V Price QOH
Details View Images 5113412 Gasket; (7.4510) 7.451002A/RA/RA/RA/R$1.222
Details View Images 5163830 Gasket; (5.2180) 7.451002A/RA/RA/RA/R$2.298
CAHK0250 Hose Assembly, #6 X 27.80" L. 7.451200A/RA/RA/RA/R0
Details CAHH0438 Hose Assembly, #6 X 46.10" L. 7.451200A/RA/RA/RA/R$122.570
5137387 Hose Assembly, Flex., 33"L.; Supply; (2.5100) (OBSOLETE) 7.451200A/RA/RA/RA/ROBSOLETE0
Details 5131519 Hose Assembly, Flex., 35 5/16" L.; Return; (3.5660) 7.451200A/RA/RA/RA/R$85.480
5132541 Hose Assembly, Flex., 37 3/4"L.; (2.5001) (OBSOLETE) 7.451200A/RA/RA/RA/ROBSOLETE0
Details 8923210 Bracket, 90 7/16" Slot, 3/8" Bolt Hole 7.451200A/RA/RA/RA/R$10.990
Details 5108612 Bracket; (4.4345) 7.451200A/RA/RA/RA/R$3.200
Details View Images 8924173 Adaptor, 3/8"-18 Pipe; (12.9565) 7.451200A/RA/RA/RA/R$6.3025
Details View Images 8927578 Bolt, 3/8"-16 X 0.755"; (12.9001) 7.451200A/RA/RA/RA/R$2.9820
Details View Images 8927579 Bolt, 3/8"-16 X 0.88"; W/Seal Patch; (12.9001) 7.451200A/RA/RA/RA/R$1.48357
Details View Images 8927580 Bolt, 3/8"-16 X 1.015"; (12.9001) 7.451200A/RA/RA/RA/R$4.3036
Details View Images 8927581 Bolt, 3/8"-16 X 1.135"; (12.9001) 7.451200A/RA/RA/RA/R$1.1742
Details 180120 Bolt, 3/8"-16 X 3/4" 7.451200A/RA/RA/RA/R$3.900
Details 186285 Bolt, 3/8-16 X 4.00" 7.451200A/RA/RA/RA/R$1.980
Details View Images 179862 Bolt, 7/16"-14 X 1.5" 7.451200A/RA/RA/RA/R$1.20294
Details 8924378 Bushing, 3/4" X 1/4" Reducing Pipe 7.451200A/RA/RA/RA/R$5.120
Details 8924378 Bushing, 3/4" X 1/4" Reducing Pipe 7.451200A/RA/RA/RA/R$5.120
Details View Images 8925325 Bushing, Reducing Pipe 3/8" Ptf. 1/4" Zinc 7.451200A/RA/RA/RA/R$4.9317
Details View Images 8925325 Bushing, Reducing Pipe, 3/8" Ptf. 1/4" Zinc 7.451200A/RA/RA/RA/R$4.9317
Details View Images 2362448 Clip, 0.688" Diameter, 3/8" Bolt Ctd.; (12.8554) 7.451200A/RA/RA/RA/R$1.830
Details 5177623 Clip, 3.8" Tube, 3/8" Bolt; (2.5120) 7.451200A/RA/RA/RA/R$0.850
Details View Images 2488022 Clip, 3/8" Bolt; (12.8554) 7.451200A/RA/RA/RA/R$1.838
Details View Images 5110070 Clip, 3/8" Diameter, 1/2" Bolt 7.451200A/RA/RA/RA/R$3.645
Details View Images 5145994 Clip, 3/8" Tube, 1/2" Bolt 7.451200A/RA/RA/RA/R$1.835
Details 5146788 Clip, 5/8" Hose; (2.5070) 7.451200A/RA/RA/RA/R$2.370
Details View Images 5171509 Clip, 5/8" Hose; (9.1591) 7.451200A/RA/RA/RA/R$6.631
Details View Images 8924171 Connector, 3/8" Inverted Flared Tube; (12.9460) 7.451200A/RA/RA/RA/R$3.2014
Details View Images 8924171 Connector, 3/8" Inverted Flared Tube; (12.9460) 7.451200A/RA/RA/RA/R$3.2014
Details View Images 8924140 Draincock, 1/4"; (12.9510) 7.451200A/RA/RA/RA/R$14.878
GROUP 7.4512 CONTINUED ON NEXT PAGE
