Series 149 Detroit Diesel Engines

FUEL SYSTEM - groups: 2.5214 - 2.5216

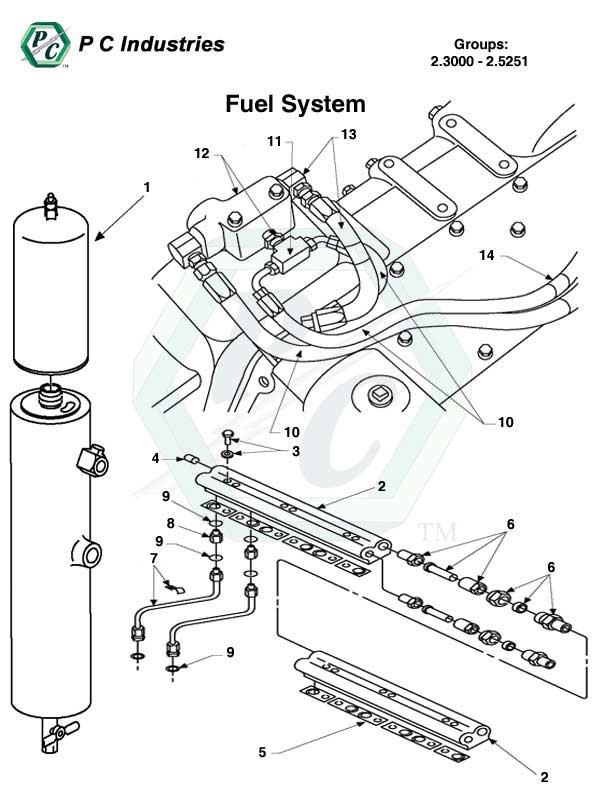

2.3000 - 2.5251 Fuel System.jpg - Diagram
Page: 87
Part No. Description Group Ref#8V12V16V20V Price QOH
Details View Images 8924171 Connector, 3/8" Inverted Flared Tube; (12.9460) 2.521400A/RA/RA/RA/R$5.3621
Details 8929831 Connector, Straight 3/8" Flared Tube, 3/8" Pipe; (12.9460) 2.521400A/RA/RA/RA/R$1.840
Details 8924998 Elbow, 90ø 2.521400A/RA/RA/RA/R$7.550
Details View Images 8929832 Elbow, 90ø 3/8" Inverted Flared Tube, 3/8" Pipe; (12.9480) 2.521400A/RA/RA/RA/R$9.025
Details View Images 8925030 Elbow, 90ø 3/8" Inverted Flared Tube; (12.9480) 2.521400A/RA/RA/RA/R$10.0516
Details View Images 8924168 Elbow, 90ø Street, 1/4" Pipe; (12.9590) 2.521400A/RA/RA/RA/R$7.6416
Details View Images 8924178 Tee, 1/4"-18 2.521400A/RA/RA/RA/R$12.336
Details View Images 8925028 Tee, 3/8" Tube, 1/4"-18 Pipe; (12.9490) 2.521400A/RA/RA/RA/R$11.644
Details CAHP0216 Hose Assembly, #6 X 23.98"; (2.5149) 2.521500A/RA/RA/RA/R$57.690
Details View Images CAHH0233 Hose Assembly, #6 X 25.6" L. 2.521500A/RA/RA/RA/R$61.711
Details WAHK0250 Hose Assembly, #6 X 27.50; H&K Wrap 2.521500A/RA/RA/RA/R$61.670
CAHK0250 Hose Assembly, #6 X 27.80" L. 2.521500A/RA/RA/RA/R0
Details CAHP0334 Hose Assembly, #6 X 35.8" L. 2.521500A/RA/RA/RA/R$96.400
Details View Images 8929833 Connector, 3/8" Inverted Flared Tube, 5/8" Pipe; (12.9460) 2.521500A/RA/RA/RA/R$4.565
Details 8929837 Elbow, 45ø 3/8 Flared Tube, 1/4 Pipe; (12.9390) 2.521500A/RA/RA/RA/R$9.020
Details 8924998 Elbow, 90ø 2.521500A/RA/RA/RA/R$7.550
Details View Images 8924168 Elbow, 90ø Street, 1/4" Pipe; (12.9590) 2.521500A/RA/RA/RA/R$7.6416
Details View Images 8924178 Tee, 1/4"-18 2.521500A/RA/RA/RA/R$12.336
Details CKAA0110 Hose Assembly, #5 X 14.64" L. 2.521600A/RA/RA/RA/R$70.050
Details CKAC0225 Hose Assembly, #5 X 26.05" L. 2.521600A/RA/RA/RA/R$74.960
CAAD0140 Hose Assembly, #6 X 17.92" L. 2.521600A/RA/RA/RA/R0
Details CAHH0171 Hose Assembly, #6 X 19.42 L. 2.521600A/RA/RA/RA/R$47.320
CAHK0280 Hose Assembly, #6 X 30.5" L. (OBSOLETE) 2.521600A/RA/RA/RA/ROBSOLETE0
Details View Images 8927579 Bolt, 3/8"-16 X 0.88"; W/Seal Patch; (12.9001) 2.521600A/RA/RA/RA/R$1.50337
Details 186619 Bolt, 3/8"-16 X 1.125" 2.521600A/RA/RA/RA/R$2.2168
Details View Images 186622 Bolt, 3/8"-16 X 1.25" 2.521600A/RA/RA/RA/R$1.2618
Details View Images 179848 Bolt, 3/8"-16 X 2.25" 2.521600A/RA/RA/RA/R$1.270
Details View Images 8927580 Bolt, 3/8"-16 X 7/8" 2.521600A/RA/RA/RA/R$4.3744
Details 8923210 Bracket, 90ø; 7/16" Slot; 3/8" Bolt Hole 2.521600A/RA/RA/RA/R$11.650
Details 8923210 Bracket, 90ø; 7/16" Slot; 3/8" Bolt Hole 2.521600A/RA/RA/RA/R$11.650
Details View Images 5173022 Bracket, Clip, 90ø 2.521600A/RA/RA/RA/R$3.44113
Details View Images 5176400 Bracket, Clip; (4.8010) 2.521600A/RA/RA/RA/R$21.233
Details View Images 5114541 Bracket; (7.1585) 2.521600A/RA/RA/RA/R$4.9057
Details View Images 2362448 Clip, 0.688" Diameter, 3/8" Bolt Ctd; (12.8554) 2.521600A/RA/RA/RA/R$1.890
GROUP 2.5216 CONTINUED ON NEXT PAGE
