Series 53 Detroit Diesel Engines

CYLINDER KITS USED WITH OPTION TYPE #'s
270, 394, 466. - group: 1.6182

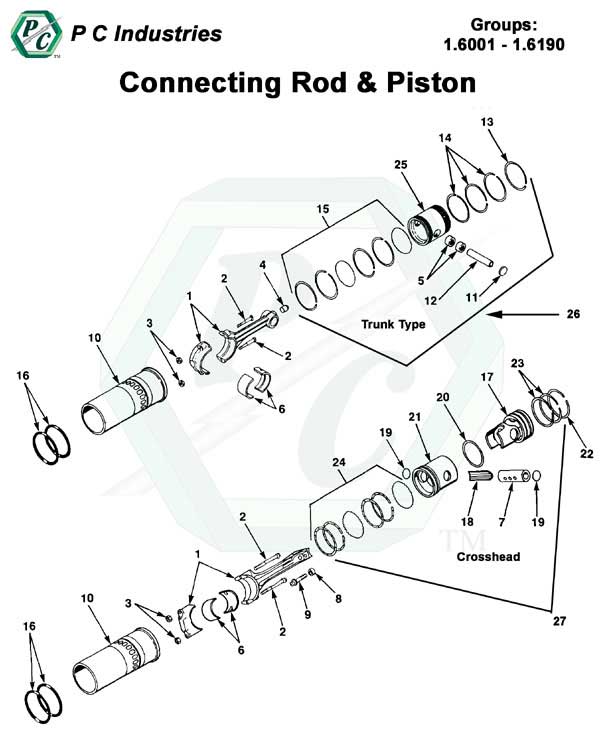

53_con_rod_pg12-21.jpg - Diagram
Page: 19
Part No. Description GroupRef#2IL3IL4IL6V53 Price QOH
All Cylinder Kits Below Are Used With Option Type # 270, 394, 466.
Details View Images 23503778 Cylinder Kit (Crosshead) (Turbo) (18:1)
(Standard Liner)
1.618200A/R$195.9312
Details View Images 5132803 Liner, Cylinder (.84" Port Ht.) (Standard Liner) (1.6180) 1.6182101$46.4359
Details View Images 23503778-10 Cylinder Kit (Crosshead) (Turbo) (18:1)
(.010" O.S. Liner)
1.618200A/R$195.930
Details View Images 5101016 Liner, Cylinder (.84" Port Ht., .010" O.S., O.D.) 1.6182101$52.0010
Details View Images 23503778-20 Cylinder Kit (Crosshead) (Turbo) (18:1)
(.020" O.S. Liner)
1.618200A/R$195.930
Details View Images 5149944 Liner, Cylinder (.84" Port Ht., .020" O.S., O.D.) 1.6182101$78.930
Sub Components Listed Below Are Included In Each Cylinder Kit Above
Details View Images 23503779 Dome Kit, Piston (18:1) (1.6110) 1.6182001$93.7930
Details 23503948 Crown, Piston (18:1) (1.6110) 1.6182171$65.000
Details View Images 8924735 Pin, Piston (1.6140) 1.6182071$23.2813
Details View Images 23504946 Bearing, Piston Pin (Slipper Type) (1.6142) 1.6182181$8.364
Details View Images 8924731 Retainer, Crosshead Piston Pin (1.6150) 1.6182192$0.5628
Details 8924733 Ring, Crosshead Piston Seal (1.6106) 1.6182201$3.620
Details 8924002 Skirt, Piston (1.6110) 1.6182211$46.430
Details View Images 23503780 Ring Set, Piston (1.6115) 1.6182001$36.2125
Details 23503718 Ring, Compression Fire (Wide Gap) (1.6120) 1.6182221$19.050
Details View Images 8925779 Ring, Compression Top & Bottom (Moly) (1.6120) 1.6182232$7.436
Details 8927224 Ring Set, Oil Control (For One Piston) 1.6182241$9.290
Details View Images 5121256 Seal, Cylinder Liner (1.6190) 1.6182162$2.41111
CONTINUE TO NEXT PAGE FOR CYLINDER KITS IN GROUP 1.6182
