Series Inline 71 Detroit Diesel Engines

LIMITING SPEED GOVERNOR - groups: 2.7001 - 2.7050

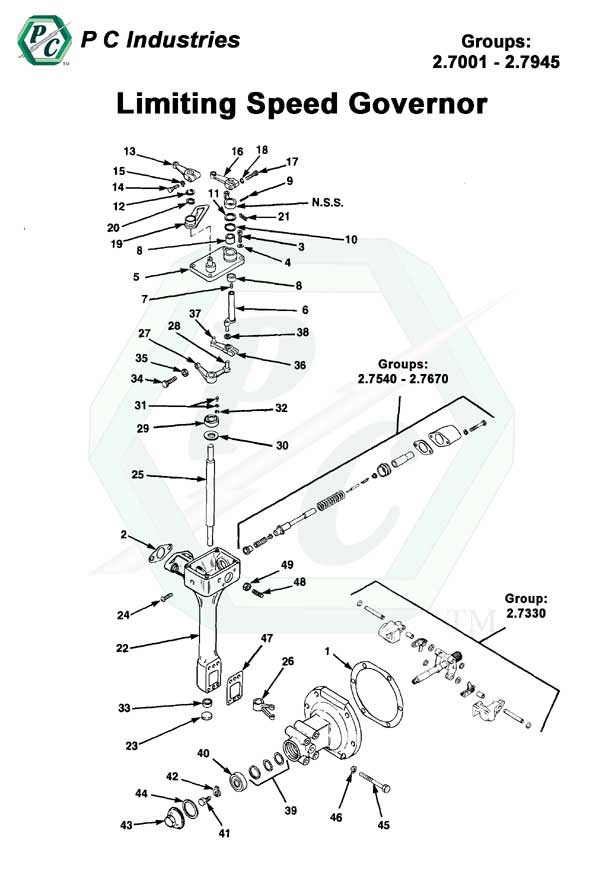

il71_limiting_governor_pg50-54.jpg - Diagram
Page: 50
Part No. Description Group Ref#2IL3IL4IL6IL Price QOH
To Identify The Correct Limiting Speed Governor Assembly,
Contact PC Industries With Engine Serial Number
Details 5116830 Governor Assembly, 4-71 C/D, Double Weight Limiting Speed 2.7001001$1,585.060
Details View Images 5122153 Governor Assembly, 6-71 C/D, Double Weight Limiting Speed 2.7001001$3,496.030
5132746 Governor Assembly, 4-71 A/B, Double Weight Limiting Speed 2.70010010
Details 5142800 Governor Assembly, 6-71 A/B, Double Weight Limiting Speed 2.7001001$3,092.020
Details 5142802 Governor Assembly, 4-71 C/D, Single Weight Limiting Speed 2.7001001$2,632.460
Details View Images 5142803 Governor Assembly, 4-71 A/B, Single Weight Limiting Speed 2.7001001$2,840.500
Details 5142808 Governor Assembly, 6-71 A/B, Single Weight Limiting Speed
Superceded... Click 'Details' for replacement.
2.70010010
Details 5142809 Governor Assembly, 6-71 C/D, Single Weight Limiting Speed
Superceded... Click 'Details' for replacement.
2.70010010
Details 5146580 Governor Assembly, 3-71 A/B, Single Weight Limiting Speed 2.7001001$2,264.720
5146581 Governor Assembly, 3-71 C/D, Single Weight Limiting Speed (OBSOLETE) 2.7001001OBSOLETE0
Details View Images 5179709 Washer, 1/4" (Copper) (2.7175) 2.700100A/RA/RA/RA/R$0.801762
Details View Images 5155596 Washer, 5/16" (Copper) (4.7120) 2.700100A/RA/RA/RA/R$0.451358
Details View Images 5113056 Plater, Governor Name 2.700200111$3.8910
Details View Images 109371 Screw, #0-3/16" Round Head Drive (12.9067) 2.700200222$2.0610
Details View Images 3223193 Cover, Governor Breather Hole 2.700500111$17.293
Details 132046 Screw, #10-24 X 5/8" Fil. HD. (12.9010) 2.700500222$1.050
Details View Images 120217 Lockwasher, #10 (12.9200) 2.700500222$0.8170
Details 5150900 Gasket, Governor Breather Hole Cover (4.8010) 2.700600111$1.11101
Details View Images 5150246 Gasket, Governor To Blower 2.701001111$1.1269
Details View Images 5152465 Gasket, Governor To Blower 2.7010011$2.374
Details 5198992 Kit, Governor Conversion (A, B, C, D Engines) 2.7012001111$537.840
Details 8928914 Kit, Governor Conversion (A, D Engines) 2.7012001111$1,100.750
Details View Images 5123812 Gasket, Governor To Cylinder Head (1.2060) 2.702002A/RA/RA/R$0.341073
Details View Images 5152464 Gasket, Governor To Cylinder Head 2.7020021$1.0310
Details View Images 5150512 Spacer, Governor To Cylinder Head (B & D Engine) 2.703000111$107.6516
Details 5174404 Cover Assy., Limiting Speed Governor (R.H.) 2.704500111$521.101
Details 5174403 Cover Assy., Limiting Speed Governor (L.H.) 2.704500111$324.890
Details View Images 5174405 Cover Assy., Limiting Speed Governor 2.704500111$566.751
Details View Images 5110653 Cover Assy., Limiting Speed Governor 2.7045001111$428.463
Details View Images 5110654 Cover Assy., Limiting Speed Governor 2.704500111$558.4910
5119688 Cover Assy., Limiting Speed Governor (OBSOLETE) 2.704500111OBSOLETE0
Details 5119687 Cover Assy., Limiting Speed Governor 2.704500111$582.240
Details View Images 5101768 Retainer, 17/64" Limiting Speed Governor 2.7045001111$4.816
Details 132268 Screw, 1/4"-20 X 7/8" Fil. Hd. (12.9010) 2.704503444$0.630
Details View Images 9417926 Bolt Assy., 1/4"-20 X 3/4" (w/LW) Governor Cover (12.9001) 2.7045003333$1.146
Details 453007 Bolt Assy., 1/4"-20 X 1" Governor Cover (12.9001) 2.7045001111$1.600
Details View Images 103319 Lockwasher, 1/4" (12.9200) 2.704504A/RA/RA/RA/R$0.40284
Details View Images 5110651 Cover Assy., Governor (Less Shaft & Levers) 2.7050051111$666.691
Details 5110652 Cover Assy., Governor (Less Shaft & Levers) 2.705005111$485.530
Details 5119682 Cover Assy., Governor (Less Shaft & Levers) 2.705005111$144.960
CONTINUE TO NEXT PAGE FOR GROUP 2.7051
