John Deere Parts Catalog

Marine Engine Model 6068DFM
PowerTech 2 Valve
6.8L 414 (6784cc) OHV Diesel L6 106.5mm Bore

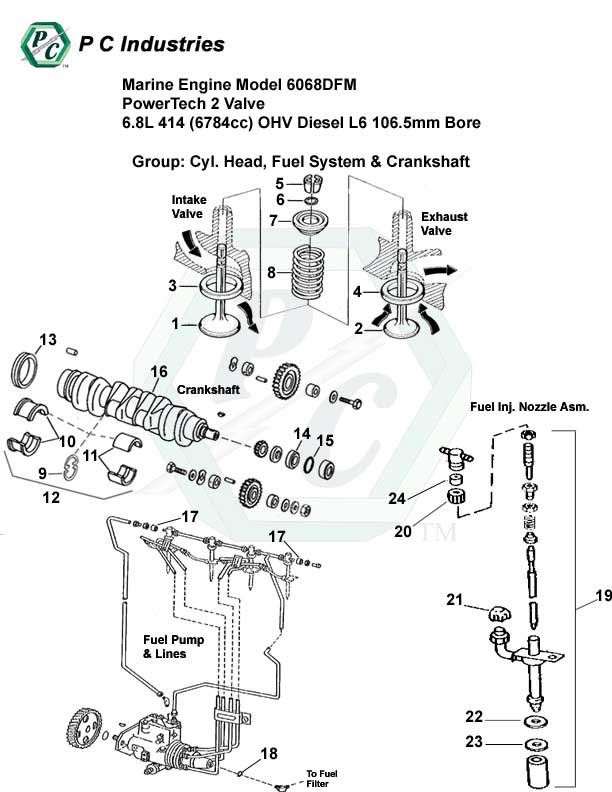

18.jpg - Diagram
Page: 18
Part No. Description Group Ref#Qty. Price QOH
Details PC-R123543 Valve Cover Gasket Cyl. Head01$15.810
Details PC-R116516 Head Gasket Cyl. Head01$44.780
Details View Images PC-R98062 Int Valve, Std., 1 Groove; Chrome Plated Stem; 1.8350" Head Dia.,
.3100" Stem Dia., 5.2780" O.A.L.
Cyl. Head16$14.590
Details View Images PC-R90692 Exh. Valve, Std., 1 Groove; Chrome Plated Stem; 1.6730" Head Dia.,
.3095" Stem Dia., 5.2550" O.A.L.
Cyl. Head26$14.150
Details PC-R91889 Keeper, Valve Cyl. Head524$0.4438
Details PC-R26125 Spring, Valve; 2.1200" Free Height Cyl. Head812$3.5516
Details PC-RE31617 Valve Stem Seal: Exh./Int. Valve Seat; Positive Type Cyl. Head612$3.40100
Details View Images PC-R53108 Starter To Block Gasket; 3-Hole Mount; Starting Motor Codes 3003, 3006,
3010, 3011, 3013, 3025, 3026
Details View Images PC-R81275 Air Int. Valve Gasket, Air Int. Valve Tube To Manifold Gasket Int/Exh Mfld.01$1.121
Details PC-RE48786 Fuel Inj. Nozzle; Nozzle Codes 16FA, 16FC, 16FD, 16FE, 16FF Fuel Sys.196$156.760
Details PC-R79605 Fuel Inj. Seal, Fuel Line Connection; 9.270mm X 13.600mm X 5.080mm Fuel Sys.246$2.5314
Details PC-R92352 Fuel Inj. Seal, Upper Packing Fuel Sys.226$9.990
Details PC-R79604 Fuel Inj. Nut; Use W/PC-RE48786 Nozzle Fuel Sys.206$2.340
Details View Images PC-AR48675 Thermostat; Therm. Code 2206; Therm. Cover Code 2123; 180 Deg. Cooling Sys.02$8.400
Details PC-U13639 O-Ring, Adapter Seal; Coolant Heater Codes 2601, 2602; 1.475" X .118" Cooling Sys.02$0.600
Details PC-U13639 O-Ring, Block Coolant Drain Plug Seal; 1.475" X .118" Cooling Sys.02$0.600
Details View Images PC-R119874 Camshaft Bearing Cyl. Block01$12.100
Details View Images PC-RE65165 Plain Main Brg., Std.; C/S & Brg. Code 4703 Crankshaft116$13.670
Details PC-RE65911 Plain Main Brg., .25mm; C/S & Brg. Code 4703 Crankshaft116$13.670
Details View Images PC-RE65168 Flanged Main Brg., Std.; C/S & Brg. Code 4703 Crankshaft121$19.740
Details PC-RE65912 Flanged Main Brg., .25mm; C/S & Brg. Code 4703 Crankshaft121$22.300
Details PC-R72328 O-Ring, Elbow Seal; Ventilating Code 2915 Crankshaft01$0.940
Details PC-R56462 O-Ring, Oil Filter Adapter; Tube Codes 8814, 8816; R.H. High Mount Crankshaft04$1.400
Details PC-R61871 O-Ring, Oil Tube From Pump To Block Crankshaft01$1.341
Details PC-R121867 Liner, Std., W/O Sealing Rings Pstn/Liner06$81.500
Details PC-RE500024 Liner, Std., W/Sealing Rings Pstn/Liner06$93.930
Details View Images PC-AR65507 Cylinder Liner Sealing Ring Kit Pstn/Liner06$19.803
Details View Images PC-RE65908 Rod Brg. Pair, Std.; Con-Rod, Brg. & Piston Code 4810; W/Con-Rod
Marked R500335
Details PC-RE65909 Rod Brg. Pair, .25mm; Con-Rod, Brg. & Piston Code 4810; W/Con-Rod
Marked R500335
Details PC-IFKPT6068 6068 In-Frame O/H Kit; Turbo & NA Eng.; W/Con-Rod Marked
R500000 & R123959
O/H Kits01$1,420.95KIT
