John Deere Parts Catalog

Off Highway Engine Model 6531A / 6531T
Standard Engine
8.7L 531 Turbo-Diesel L6 4.75" Bore

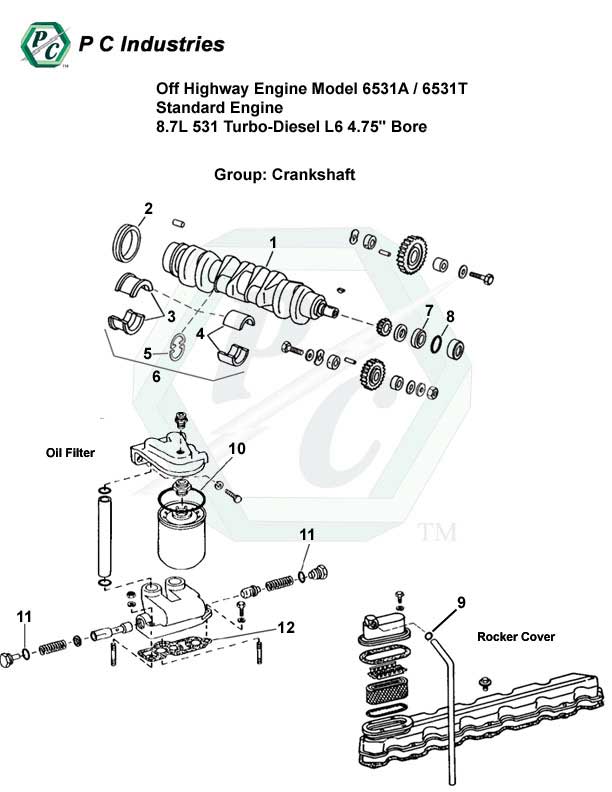

536.jpg - Diagram
Page: 474
Part No. Description GroupRef#Qty. Price QOH
Details PC-AR101268 Plain Main Bearing, Std.; W/Partial Groove Lower Bearing Crankshaft46$32.270
Details PC-AR104122 Plain Main Bearing, .25mm; W/Partial Groove Lower Bearing Crankshaft46$32.480
Details PC-AR104123 Plain Main Bearing, .50mm; W/Partial Groove Lower Bearing Crankshaft46$32.480
Details PC-AR104124 Plain Main Bearing, .75mm; W/Partial Groove Lower Bearing Crankshaft46$32.480
Details PC-AR101267 Flanged Main Bearing, Std. Crankshaft36$35.991
Details PC-AR104564 Flanged Main Bearing, .25mm Crankshaft36$35.690
Details PC-AR104565 Flanged Main Bearing, .50mm Crankshaft36$28.000
Details PC-AR104566 Flanged Main Bearing, .75mm Crankshaft36$35.690
Details PC-AR101269 Flanged Main Bearing, Std.; W/Partial Groove Lower Bearing Crankshaft31$41.880
Details PC-AR104126 Flanged Main Bearing, .25mm; W/Partial Groove Lower Bearing Crankshaft31$46.590
Details PC-AR104127 Flanged Main Bearing, .50mm; W/Partial Groove Lower Bearing Crankshaft31$46.590
Details PC-AR104128 Flanged Main Bearing, .75mm; W/Partial Groove Lower Bearing Crankshaft31$28.190
Details PC-AR89622 Thrust Washer Set; Std. Crankshaft51$26.101
Details PC-AR89971 Thrust Washer Set, 7 Crankshaft51$9.950
Details PC-R495R O-Ring, Ventilator Tube; Rocker Cover Codes 1102, 1104; Smooth Crankshaft91$0.440
Details PC-R43660 Rectangle Or Square Seal, Filter To Housing; 6531A Engines;
W/Housing Marked R46424; To Serial # 357,083
Crankshaft101$2.210
Details PC-R49485 Oil Pressure Regulator Housing Gasket; 6531A Engines; W/Housing
Marked R48349; W/One Hole
Crankshaft01$1.440
Details PC-R49484 Oil Pressure Regulator Housing Gasket; 6531A Engines; W/Housing
Marked R48349, R68157, R71485; W/Two Holes
Crankshaft01$1.440
OFF HIGHWAY ENGINE 6531A / 6531T CONTINUED ON NEXT PAGE
