John Deere Parts Catalog

Off Highway Engine Model 6531A / 6531T
Standard Engine
8.7L 531 Turbo-Diesel L6 4.75" Bore

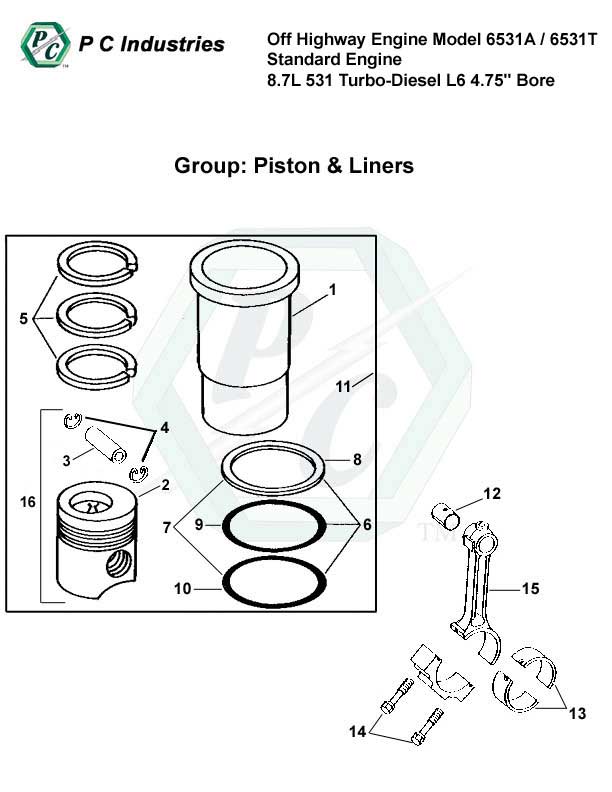

537-538.jpg - Diagram
Page: 475
Section Menu   Information   Abbreviations
Part No. Description Group Ref#Qty. Price QOH
Details PC-R48350 Liner, W/O Sealing Rings Pstn/Liner16$148.600
Details PC-R48350-WS Liner, W/Sealing Rings Pstn/Liner16$162.630
PC-CK3227-8350 Cylinder Kit Complete, Std.; 6531A Engines; W/Block Marked R48260, R72129,
R80401; W/Con. Rod Marked R48315, R53287, R58883, R66926 		Pstn/Liner1160
PC-CK6347-8350 Cylinder Kit Complete, Std.; 6531T Engines; W/Block Marked R48260, R72129,
R80401; W/Con. Rod Marked R48315, R53287, R58883, R66926; 6 Sealing
Ring, Liner PC-R49423 		Pstn/Liner1160
Details PC-AR53227 Piston Body, W/O Pin; 6531A Engines Pstn/Liner26$165.800
Details PC-AR66347 Piston Body, W/O Pin; 6531T Engines Pstn/Liner26$172.870
Details PC-AR53227-WP Piston Kit, W/Pin & Retainers; 6531A Engines Pstn/Liner166$168.960
Details PC-AR66347-WP Piston Kit, W/Pin & Retainers; 6531T Engines Pstn/Liner166$172.240
Details PC-AR53225 Piston Kit, W/Ring Set; 6531A Engines Pstn/Liner166$227.100
Details PC-AR67512 Piston Kit, W/Ring Set; 6531T Engines Pstn/Liner166$238.070
Details PC-R49418 Piston Pin Pstn/Liner36$28.680
Details PC-E1343FN Piston Pin Retainer Pstn/Liner412$1.800
Details PC-R76783 Piston Pin Bushing; W/Con. Rod Marked R48315, R53287, R58883, R66926;
W/1.875" Pin Dia.; W/1.8762" ID, 2.0622" OD, 1.625" O.A.L. 		Pstn/Liner126$23.870
Details PC-R66453 Con. Rod Bolt; W/Con. Rod Marked R48315, R53287, R58883, R66926;
Torque-To-Yield Bolt; Replacement Recommended 		Pstn/Liner1412$11.3012
Details PC-AR101271 Rod Bearing Pair, Std.; W/O Oil Hole & Groove Pstn/Liner136$38.040
Details PC-AR104130 Rod Bearing Pair, .25mm; W/O Oil Hole & Groove Pstn/Liner136$38.040
Details PC-AR104131 Rod Bearing Pair, .50mm; W/O Oil Hole & Groove Pstn/Liner136$38.040
Details PC-AR104132 Rod Bearing Pair, .75mm; W/O Oil Hole & Groove Pstn/Liner136$33.510
OFF HIGHWAY ENGINE 6531A / 6531T CONTINUED ON NEXT PAGE
