John Deere Parts Catalog

Marine Engine Model 4045SFM
PowerTech 2 Valve Intercooled
4.5L 276 (4522cc) OHV Turbo-Diesel L4 106.5mm Bore

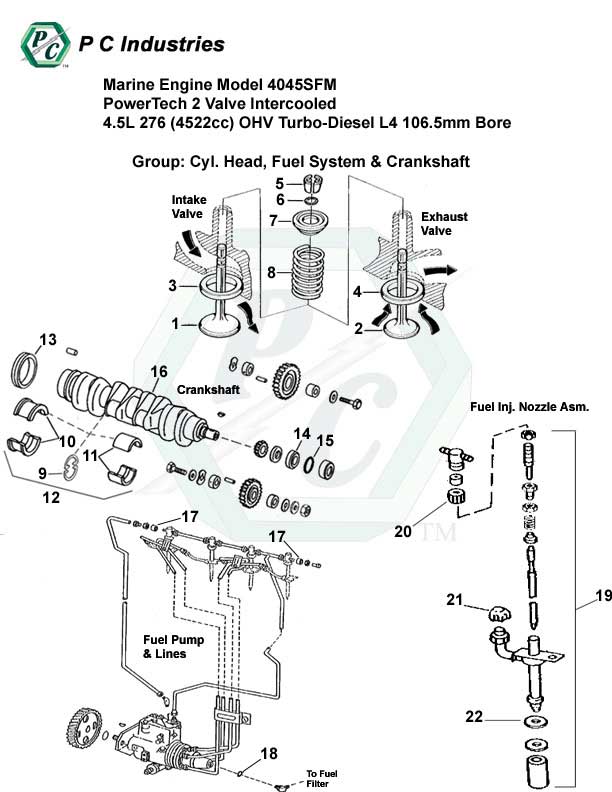

8.jpg - Diagram
Page: 8
Section Menu   Information   Abbreviations
Part No. Description Group Ref#Qty. Price QOH
Details PC-R123542 Valve Cover Gasket Cyl. Head01$13.811
Details PC-R116515 Head Gasket Cyl. Head01$31.790
Details View Images PC-R98062 Intake Valve, Std., 1 Groove; Chrome Plated Stem; 1.8350" Head Dia., .3100"
Stem Dia., 5.2780" O.A.L. 		Cyl. Head14$14.590
Details PC-R97490 Intake Valve, 15, 1 Groove; Chrome Plated Stem; 1.8350" Head Dia., .3250"
Stem Dia., 5.2780" O.A.L. 		Cyl. Head14$15.790
Details View Images PC-R90692 Exh. Valve, Std., 1 Groove; Chrome Plated Stem; 1.6730" Head Dia., .3095"
Stem Dia., 5.2550" O.A.L. 		Cyl. Head24$14.150
Details PC-R97492 Exh. Valve, 15, 1 Groove; Chrome Plated Stem; 1.6730" Head Dia., .3245"
Stem Dia., 5.2550" O.A.L. 		Cyl. Head24$15.010
Details PC-R91889 Keeper, Valve; Exh. Valve Seat & Intake Valve Seat Cyl. Head516$0.4438
Details PC-R26125 Spring, Valve; Exh. Valve Seat & Intake Valve Seat; 2.1200" Free Height Cyl. Head88$3.5516
Details PC-RE60005 Rotocap, Valve; Exh. Valve Seat & Intake Valve Seat Cyl. Head78$10.780
Details PC-RE31617 Valve Stem Seal, Positive Type Cyl. Head68$3.40100
Details View Images PC-R53108 Starter To Block Gasket, 3-Hole Mount; Starting Motor Codes 3005, 3006,
3010, 3011, 3012 		Electrical01$1.890
Details PC-RE48786 Fuel Inj. Nozzle, Nozzle Codes 16BF, 16CE, 16CM, 16GL, 16LP, 16LQ,
16NH, 160R, 160S, 1606, 1608, 1675, 1677, 1682, 1683, 1692, 1694, 1695 		Fuel Sys.194$156.760
Details PC-RE48786 Fuel Inj. Nozzle, 4045H Eng.; Nozzle Codes 160B, 160C, 1610, 1611, 1656, 1667 Fuel Sys.194$156.760
Details PC-R92352 Fuel Inj. Seal, Upper Packing; W/Inj. Nozzle Codes 16BF, 16CE, 16CM,
16CV, 16GL, 16LP, 16LQ, 16NH, 16OR, 1605, 1606, 1608, 1656, 1667, 1675, 1677,
1682, 1683, 1692, 1694, 1695 		Fuel Sys.224$9.990
Details PC-R92352 Fuel Inj. Seal, Upper Packing; 4045H Eng.; W/Inj. Nozzle Codes 160B,
160C, 1610, 1611 		Fuel Sys.224$9.990
Details PC-R79604 Fuel Inj. Nut; W/Inj. Nozzle Codes 16HM, 16HN, 16HP, 16HQ, 16LK, 16LL Fuel Sys.204$2.340
Details View Images PC-R51936 Washer Type Seal, Aux. Drive Line; Line Codes 5201, 5202, 5203, 5205, 5206 Fuel Sys.171$0.990
Details View Images PC-R51936 Washer Type Seal, Fuel Line; Aftercooled; Line Codes 160B, 1611 Fuel Sys.172$0.990
Details View Images PC-R51936 Washer Type Seal, Fuel Line; Line Codes 16BF, 16CE, 16CM, 16CV, 16GL, 16LN,
16LP, 16LQ, 16NH, 16OR, 1605, 1671, 1677, 1682 		Fuel Sys.172$0.990
PC-R98527 Water Pump Filter; W/Pump Hsg. Marked RE70683 Cooling Sys.010
Details View Images PC-R97342 Oil Pan Gasket; Oil Pan Codes 1904, 1905; W/Stamped Pan Cyl. Block01$21.210
Details PC-U13639 O-Ring, Block Coolant Drain Plug Seal; Coolant Heater Codes 2601, 2602;
1.475" X .118" 		Cyl. Block02$0.600
Details View Images PC-R119874 Camshaft Bearing Cyl. Block01$12.100
Details View Images PC-RE24959 Oil Seal, Crankshaft, Rear Crankshaft131$29.780
Details View Images PC-RE65165 Plain Main Brg., Std.; Crankshaft & Brg. Code 4701 Crankshaft114$13.670
Details PC-RE65911 Plain Main Brg., .25mm; Crankshaft & Brg. Code 4701 Crankshaft114$13.670
Details View Images PC-RE65168 Flanged Main Brg., Std.; Crankshaft & Brg. Code 4701 Crankshaft101$19.740
Details PC-RE65912 Flanged Main Brg., .25mm; Crankshaft & Brg. Code 4701 Crankshaft101$22.300
MARINE ENGINE 4045SFM CONTINUED ON NEXT PAGE
