John Deere Parts Catalog

Industrial Engine Model 4045H
PowerTech 2V IC
4.5L 276 (4522cc) OHV Turbo-Diesel L4 106.5mm Bore

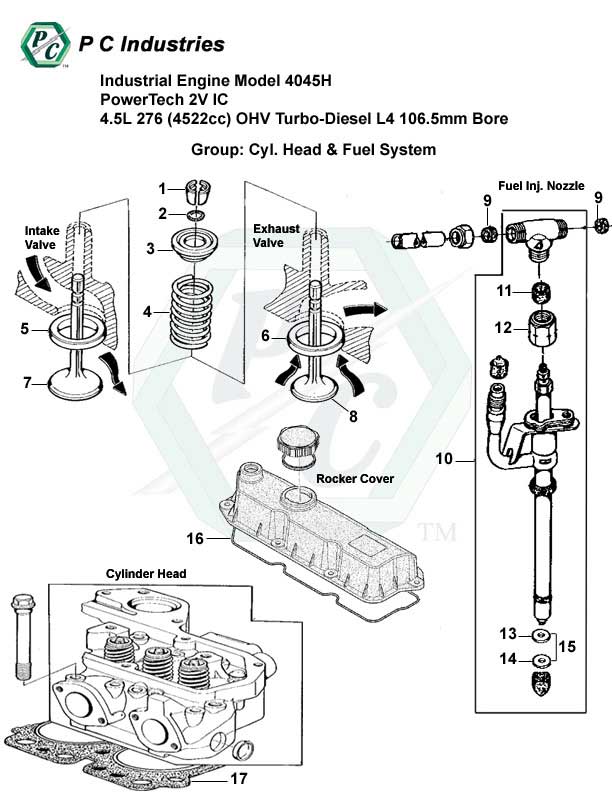

82.jpg - Diagram
Page: 82
Section Menu   Information   Abbreviations
Part No. Description Group Ref#Qty. Price QOH
Details PC-R123542 Valve Cover Gasket Cyl. Head161$13.811
Details PC-R116515 Head Gasket Cyl. Head171$31.790
Details View Images PC-R98062 Intake Valve, Std., 1 Groove; Chrome Plated Stem; 1.8350" Head Dia.,
.3100" Stem Dia., 5.2780" O.A.L. 		Cyl. Head74$14.590
Details PC-R97490 Intake Valve, 15, 1 Groove; Chrome Plated Stem; 1.8350" Head Dia.,
.3250" Stem Dia., 5.2780" O.A.L. 		Cyl. Head74$15.790
Details View Images PC-R90692 Exhaust Valve, Std.; 1 Groove; Chrome Plated Stem; 1.6730" Head Dia.,
.3095" Stem Dia., 5.2550" O.A.L. 		Cyl. Head84$14.150
Details PC-R97492 Exhaust Valve, 15, 1 Groove; Chrome Plated Stem; 1.6730" Head Dia.,
.3245" Stem Dia., 5.2550" O.A.L. 		Cyl. Head84$15.010
Details PC-R91889 Keeper, Valve; Exhaust Valve Seat & Intake Valve Seat Cyl. Head116$0.4438
Details View Images PC-R85687 Exhaust Valve Seat, Std. Cyl. Head64$9.815
Details View Images PC-R98335 Intake Valve Seat Std.; .020" Dia. O/S Face Width; 1.8575" OD, 1.5500" ID,
.2580" Depth 		Cyl. Head54$9.840
Details View Images PC-R98063 Intake Valve Seat, Std.; 1.8575" OD, 1.5500" ID, .2580" Depth Cyl. Head54$10.285
Details PC-R26125 Spring, Valve; Exhaust Valve Seat & Intake Valve Seat; 2.1200" Free Height Cyl. Head48$3.5516
Details PC-RE60005 Rotocap, Valve; Exhaust Valve Seat & Intake Valve Seat Cyl. Head38$10.780
Details PC-RE31617 Valve Stem Seal; Positive Type Cyl. Head18$3.40100
Details View Images PC-R53108 Starter To Block Gasket, 3-Hole Mount; Starting Motor Codes 3005, 3006,
3010, 3011, 3012 		Electrical01$1.890
Details PC-RE48786 Fuel Injector Nozzle; Nozzle Codes 16BF, 16CE, 16CM, 16GL, 16LP, 16LQ,
16NH, 160R, 160S, 1606, 1608, 1675, 1677, 1682, 1683, 1692, 1694, 1695 		Fuel Sys.104$156.760
Details PC-RE48786 Fuel Injector Nozzle; 4045H Engines; Nozzle Codes 160B, 160C, 1610,
1611, 1656, 1667 		Fuel Sys.104$156.760
Details PC-R92352 Fuel Injector Seal, Upper Packing; W/Injector Nozzle Codes 16BF, 16CE, 16CM,
16CV, 16GL, 16LP, 16LQ, 16NH, 16OR, 1605, 1606, 1608, 1656, 1667, 1675,
1677, 1682, 1683, 1692, 1694, 1695 		Fuel Sys.134$9.990
Details PC-R92352 Fuel Injector Seal, Upper Packing; 4045H Engines; W/Injector Nozzle Codes
160B, 160C, 1610, 1611 		Fuel Sys.134$9.990
Details PC-R79604 Fuel Injector Nut; W/Injector Nozzle Codes 16HM, 16HN, 16HP, 16HQ, 16LK, 16LL Fuel Sys.124$2.340
Details View Images PC-R51936 Washer Type Seal, Auxiliary Drive Line; Line Codes 5201, 5202, 5203, 5205, 5206 Fuel Sys.01$0.990
Details View Images PC-R51936 Washer Type Seal, Fuel Line; Aftercooled; Line Codes 160B, 1611 Fuel Sys.02$0.990
Details View Images PC-R51936 Washer Type Seal, Fuel Line; Line Codes 16BF, 16CE, 16CM, 16CV, 16GL,
16LN, 16LP, 16LQ, 16NH, 16OR, 1605, 1671, 1677, 1682 		Fuel Sys.92$0.990
PC-R98527 Water Pump Filter; W/Pump Housing Marked RE70683 Cooling Sys.010
Details View Images PC-R97342 Oil Pan Gasket; Oil Pan Codes 1904, 1905; W/Stamped Oil Pan Cyl. Block01$21.210
Details PC-U13639 O-Ring, Block Coolant Drain Plug Seal; Coolant Heater Codes 2601, 2602;
1.475" X .118" 		Cyl. Block02$0.600
Details View Images PC-R119874 Camshaft Bearing Cyl. Block01$12.100
INDUSTRIAL ENGINE 4045H CONTINUED ON NEXT PAGE
