John Deere Parts Catalog

Industrial Engine Model 4045T
PowerTech 2V
4.5L 276 (4522cc) OHV Turbo-Diesel L4 106.5mm Bore

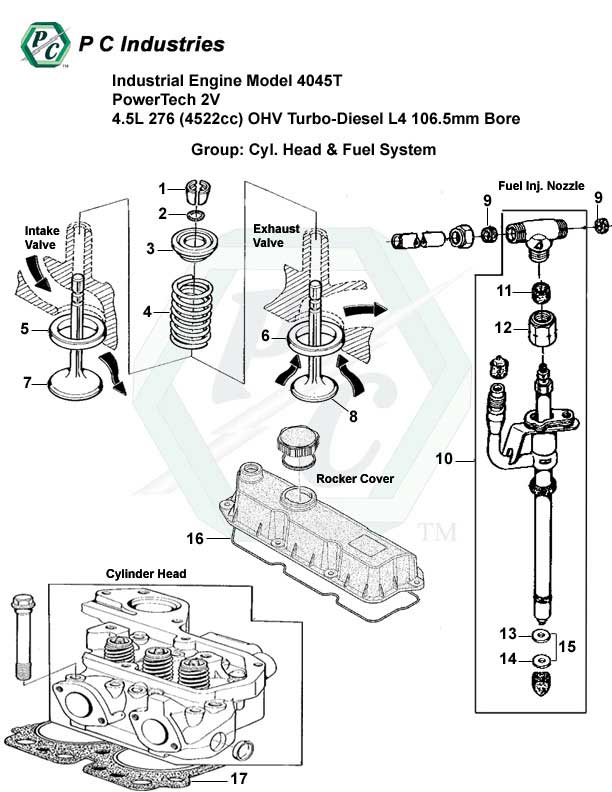

99.jpg - Diagram
Page: 99
Part No. Description Group Ref#Qty. Price QOH
Details PC-R123542 Valve Cover Gasket Cyl. Head161$10.591
Details PC-R116515 Head Gasket Cyl. Head171$25.190
Details PC-R98062 Intake Valve, Std., 1 Groove; Chrome Plated Stem; 1.8350" Head Dia.,
.3100" Stem Dia., 5.2780" O.A.L.
Cyl. Head74$13.772
Details PC-R97490 Intake Valve, 15, 1 Groove; Chrome Plated Stem; 1.8350" Head Dia.,
.3250" Stem Dia., 5.2780" O.A.L.
Cyl. Head74$14.910
Details PC-R90692 Exhaust Valve, Std., 1 Groove; Chrome Plated Stem; 1.6730" Head Dia.,
.3095" Stem Dia., 5.2550" O.A.L.
Cyl. Head84$13.352
Details PC-R97492 Exhaust Valve, 15, 1 Groove; Chrome Plated Stem; 1.6730" Head Dia.,
.3245" Stem Dia., 5.2550" O.A.L.
Cyl. Head84$13.740
Details PC-R91889 Keeper, Valve; Exhaust Valve Seat & Intake Valve Seat Cyl. Head116$0.2238
Details PC-R85687 Exhaust Valve Seat, Std. Cyl. Head64$9.8113
Details PC-R98335 Intake Valve Seat, Std.; .020" Dia. O/S Face Width; 1.8575" OD, 1.5500" ID,
.2580" Depth
Cyl. Head54$9.850
Details PC-R98063 Intake Valve Seat, Std.; 1.8575" OD, 1.5500" ID, .2580" Depth Cyl. Head54$10.2913
Details PC-R26125 Spring, Valve; Exhaust Valve Seat & Intake Valve Seat; 2.1200" Free Height Cyl. Head48$3.2216
Details PC-RE60005 Rotocap, Valve; Exhaust Valve Seat & Intake Valve Seat Cyl. Head38$10.170
Details View Images PC-R53108 Starter To Block Gasket, 3-Hole Mount; Starting Motor Codes 3005,
3006, 3010, 3011, 3012
Electrical01$1.780
Details PC-RE48786 Fuel Injector Nozzle; Nozzle Codes 16BF, 16CE, 16CM, 16GL, 16LP, 16LQ, 16NH,
160R, 160S, 1606, 1608, 1675, 1677, 1682, 1683, 1692, 1694, 1695
Fuel Sys.104$143.550
Details PC-R92352 Fuel Injector Seal, Upper Packing; W/Injector Nozzle Codes 16BF, 16CE, 16CM,
16CV, 16GL, 16LP, 16LQ, 16NH, 16OR, 1605, 1606, 1608, 1656, 1667, 1675, 1677,
1682, 1683, 1692, 1694, 1695
Fuel Sys.134$10.000
Details PC-R79604 Fuel Injector Nut; W/Injector Nozzle Codes 16HM, 16HN, 16HP, 16HQ, 16LK, 16LL Fuel Sys.124$2.200
Details View Images PC-R51936 Washer Type Seal, Auxiliary Drive Line; Line Codes 5201, 5202, 5203, 5205, 5206 Fuel Sys.01$0.940
Details View Images PC-R51936 Washer Type Seal, Fuel Line; Aftercooled; Line Codes 160B, 1611 Fuel Sys.02$0.940
Details View Images PC-R51936 Washer Type Seal, Fuel Line; Line Codes 16BF, 16CE, 16CM, 16CV, 16GL, 16LN,
16LP, 16LQ, 16NH, 16OR, 1605, 1671, 1677, 1682
Fuel Sys.92$0.940
INDUSTRIAL ENGINE 4045T CONTINUED ON NEXT PAGE
