Series 4000 Detroit Diesel Engines

TURBOCHARGER - groups 3.5003 - 3.5324

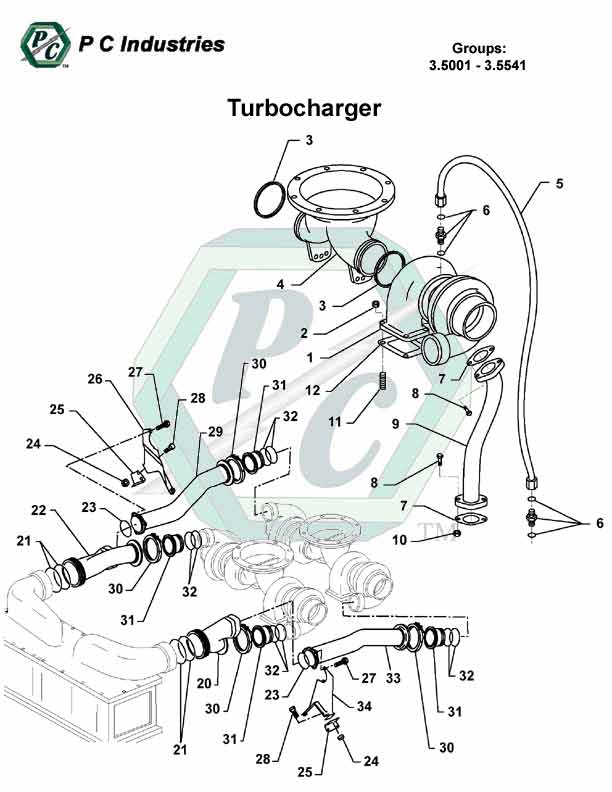

S4000-Pg81-94.jpg - Diagram
Page: 87
Part No. Description Group Ref#8V12V16V20V Price QOH
Details 5240810501 Turbocharger Housing, 1.12 A/R 3.5003A/RA/RA/RA/R$355.730
Details 5240810001 Turbocharger Housing 3.5003A/RA/RA/RA/R$1,667.230
Details 5240982637 Housing, CAC Inlet Top, 16V4000 3.5003A/R$2,558.530
Details 5240940153 Spacer 3.5003A/RA/RA/RA/R$4.350
Details View Images 5240940253 Spacer, 20x25 3.5003A/RA/RA/RA/R$7.1946
Details View Images 700429870000 O-Ring, 16V4000 3.5003A/R$80.040
Details View Images 23505492 Clamp, Turbine 3.5003A/RA/RA/RA/R$70.9830
Details 000931008240 Bolt, M8x90x10.9 Hex 3.5003A/RA/RA/RA/R$0.900
Details View Images 304017008037 Bolt, M8x65 3.5003A/RA/RA/RA/R$2.850
Details View Images 23505789 Kit, Compressor V-Band w/Nut 3.5022A/RA/RA/RA/R$45.005
Details 23505781 Kit, Turbine V-Band Clamp, w/Nut 3.50221111$118.180
Details 23540091 Turbocharger Housing 3.5022A/RA/RA/RA/R$1,193.350
Details 5260200305 Rotating Housing 3.5022A/RA/RA/RA/R$2,319.800
Details 23505493 Clamp, V-Band 3.50221111$66.580
Details View Images 23517076 Gasket, Turbocharger Exhaust Inlet 3.530712A/RA/RA/RA/R$21.317
Details 5241420680 Gasket, Turbocharger Mounting Base 3.530712A/RA/RA/RA/R$32.110
Details 5241801640 Retainer 3.5318A/RA/RA/RA/R$59.920
Details 5241872240 Bracket 3.5318A/RA/RA/RA/R$7.050
Details 000933012054 Bolt, M12x25 Hex 3.5318A/RA/RA/RA/R$1.050
Details View Images 304017008083 Bolt, M8x1.25x30 3.5318A/RA/RA/RA/R$0.543
Details 735151008100 Washer 3.5318A/RA/RA/RA/R$7.360
Details 5361420767 Housing, R.B. Turbocharger Outlet 3.5324A/RA/RA/RA/R$779.670
Details 5241420102 Outlet, Turbocharger Exhaust
Superceded... Click 'Details' for replacement.
3.53244A/RA/RA/RA/R0
Details 5241420202 Outlet, Turbocharger Exhaust
Superceded... Click 'Details' for replacement.
3.53244A/RA/RA/RA/R0
Details View Images 5241420302 Outlet, Turbocharger Exhaust 3.53244A/RA/RA/RA/R$763.550
Details 5261400114 Elbow, Turbocharger Exhaust 3.5324A/RA/RA/RA/R$1,089.680
GROUP 3.5324 CONTINUED ON NEXT PAGE.
